固态硬盘

总方框图

固态硬盘

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

输入电压电源部分

电源输入保护电路示例

电源

各种器件电源电路示例

信号系统

外部连接器的ESD器件保护电路示例

电平转换

电平转换（1）

使用MOSFET的电压电平转换电路示例

电平转换（2）

使用逻辑IC的电压电平转换电路示例

过温监测电路

多点过温监测电路示例

子方框图

输入电压电源部分

电源输入保护电路示例

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL	DF2S6P1CT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-16	+/-15	+/-8	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.7	0.7	1.05	0.23
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.15	0.15	0.12	90

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

Various protection functions such as suppression of inrush current protect the subsequent system.

器件型号	TCK301G	TCK303G
Toshiba Package Name	WCSP9	WCSP9
V_IN (Max) [V]	30	30
I_OUT(DC) (Max) [A]	3	3

搜索产品线

High voltage and low leakage. Protect the circuit from reverse connection of the power line.

器件型号	CUHS20F30	CUHS20F40
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	30	40
C_T (Typ.) [pF]	380	300

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

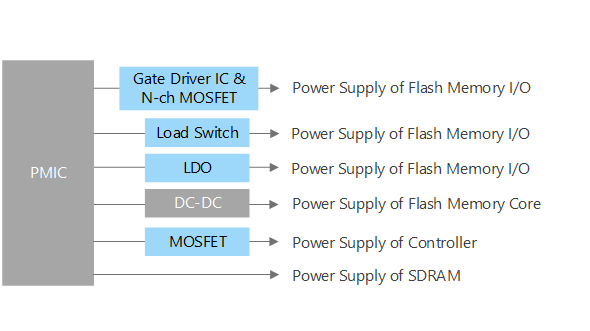

电源

各种器件电源电路示例

Variety of product with low on-resistance and various built-in functions.

器件型号	TCK111G	TCK127BG	TCK206G	TCK207AN
Toshiba Package Name	WCSP6C	WCSP4G	WCSP4C	DFN4A
V_IN (Max) [V]	6	6	4	4
I_OUT(DC) (Max) [A]	3	1	2	2

搜索产品线

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

It is suitable for load switch applications, level shift applications, etc. and contributes to reduced power consumption and miniaturization of sets.

器件型号	SSM3J338R	SSM3K324R	SSM3K35AMFV
Toshiba Package Name	SOT-23F	SOT-23F	SOT-723 (VESM)
V_DSS (Max) [V]	-12	30	20
I_D (Max) [A]	-6	4	0.25
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.0202	0.056	1.1
Polarity	P-ch	N-ch	N-ch

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

信号系统

外部连接器的ESD器件保护电路示例

TVS diode

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL	DF2S6P1CT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-16	+/-15	+/-8	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.7	0.7	1.05	0.23
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.15	0.15	0.12	90

搜索产品线

电平转换

电平转换（1）

使用MOSFET的电压电平转换电路示例

Small signal MOSFET

It is suitable for load switch applications, level shift applications, etc. and contributes to reduced power consumption and miniaturization of sets.

器件型号	SSM3J338R	SSM3K324R	SSM3K35AMFV
Toshiba Package Name	SOT-23F	SOT-23F	SOT-723 (VESM)
V_DSS (Max) [V]	-12	30	20
I_D (Max) [A]	-6	4	0.25
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.0202	0.056	1.1
Polarity	P-ch	N-ch	N-ch

搜索产品线

电平转换（2）

使用逻辑IC的电压电平转换电路示例

L-MOS with level shift function

Unifunctional one-gate logic IC with level shift function by single power supply.

器件型号	7UL1T02FU	7UL1T08FU	7UL1T32FU
Toshiba Package Name	SOT-353 (USV)	SOT-353 (USV)	SOT-353 (USV)
V_CC (Max) [V]	3.6	3.6	3.6
Function	2-Input NOR Gate with Level Shifting	2-Input AND Gate with Level Shifting	2-Input OR Gate with Level Shifting

搜索产品线

过温监测电路

多点过温监测电路示例

Over temperature detection IC (1)
Over temperature detection IC (2)

TCTH series can detect temperature rise at multiple points on the circuit board.

器件型号	TCTH011AE	TCTH012AE	TCTH021AE	TCTH022AE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Push-pull	Push-pull	Push-pull	Push-pull

搜索产品线

TCTH series can detect temperature rise at multiple points on the circuit board.

器件型号	TCTH011BE	TCTH012BE	TCTH021BE	TCTH022BE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Open drain	Open drain	Open drain	Open drain
