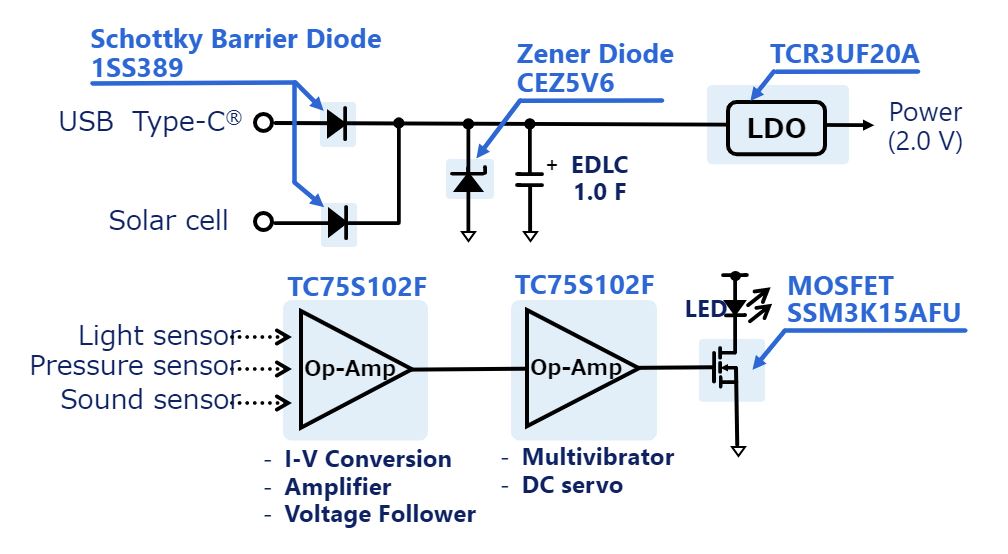

适用于各种传感器的低功耗运算放大器TC75S102F的应用电路。这些应用电路可用于需要长电池寿命的设备、物联网传感器、能量收集系统等。
Click on components for more details
电路拓扑 | 低功耗运算放大器应用电路 |
---|---|
光传感器电路 | I-V转换电路 |
压力传感器电路 | 缓冲电路 |
声音传感器电路 | 小信号放大器/直流伺服电路 |
上述通用电路 | 多谐振荡器电路 |
我们向设计人员提供电路操作概要和设计要点说明等资料。请单击每个选项卡,将其用于电路设计。
我们提供可加载到EDA工具中的电路数据、PCB布局数据以及PCB制造中使用的数据。多个工具供应商为您提供了多种格式。您可以使用您的工具进行自由编辑。
器件型号 | 器件目录 | 搭载部位・数量 | 说明 |
---|---|---|---|
运算放大器 | - | 单运算放大器(CMOS),5.5V,+/-2.75V,SOT-25(SMV) | |
齐纳二极管 | - | 5.6V 齐纳二极管,SOD-523(ESC) | |
肖特基势垒二极管 | - | 10V/0.1A肖特基势垒二极管,SOD-523(ESC) | |
小信号MOSFET | - | N沟道MOSFET,30V,0.1A,3.6Ω@4V,SOT-323(USM) | |
低压差(LDO)线性稳压器 | - | 300mA固定输出LDO稳压器,2.0V,SOT-25(SMV) |
我们提供有助于设计和研究相似电路的参考资料,例如已安装产品的应用说明。请单击每个选项卡使用这些资料。
