智能音响

总方框图

智能音响

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

电源电路

采用具有各种保护功能器件的电源电路示例

无线通信电路

Wi-Fi^Ⓡ／Bluetooth^Ⓡ解决方案

使用外部器件的无线通信电路示例

光度感应器

光度感应器电路示例

摄像头模块

摄像头模块电路示例

LCD背光

LCD背光驱动电路示例

图像处理单元

图像处理处理器外围电路示例

子方框图

电源电路

采用具有各种保护功能器件的电源电路示例

TVS diode
Electronic fuse (eFuse IC)(1)
Electronic fuse (eFuse IC)(2)
N-ch MOSFET gate driver IC(1)
N-ch MOSFET gate driver IC(2)

TVS diode

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45

搜索产品线

Electronic fuse (eFuse IC)(1)

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC)(2)

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

N-ch MOSFET gate driver IC(1)

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

N-ch MOSFET gate driver IC(2)

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

无线通信电路

Wi-Fi^Ⓡ／Bluetooth^Ⓡ解决方案

使用外部器件的无线通信电路示例

Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)
TVS diode

Small surface mount LDO regulator(1)

器件型号	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜索产品线

Small surface mount LDO regulator(2)

器件型号	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0

搜索产品线

TVS diode

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45

搜索产品线

光度感应器

光度感应器电路示例

Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)
Low noise operational amplifier

Small surface mount LDO regulator(1)

器件型号	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜索产品线

Small surface mount LDO regulator(2)

器件型号	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0

搜索产品线

Low noise operational amplifier

器件型号	TC75S67TU
Toshiba Package Name	SOT-353F (UFV)
V_CC (Max) [V]	5.5
V_CC, V_EE (Max) [V]	+/-2.75

搜索产品线

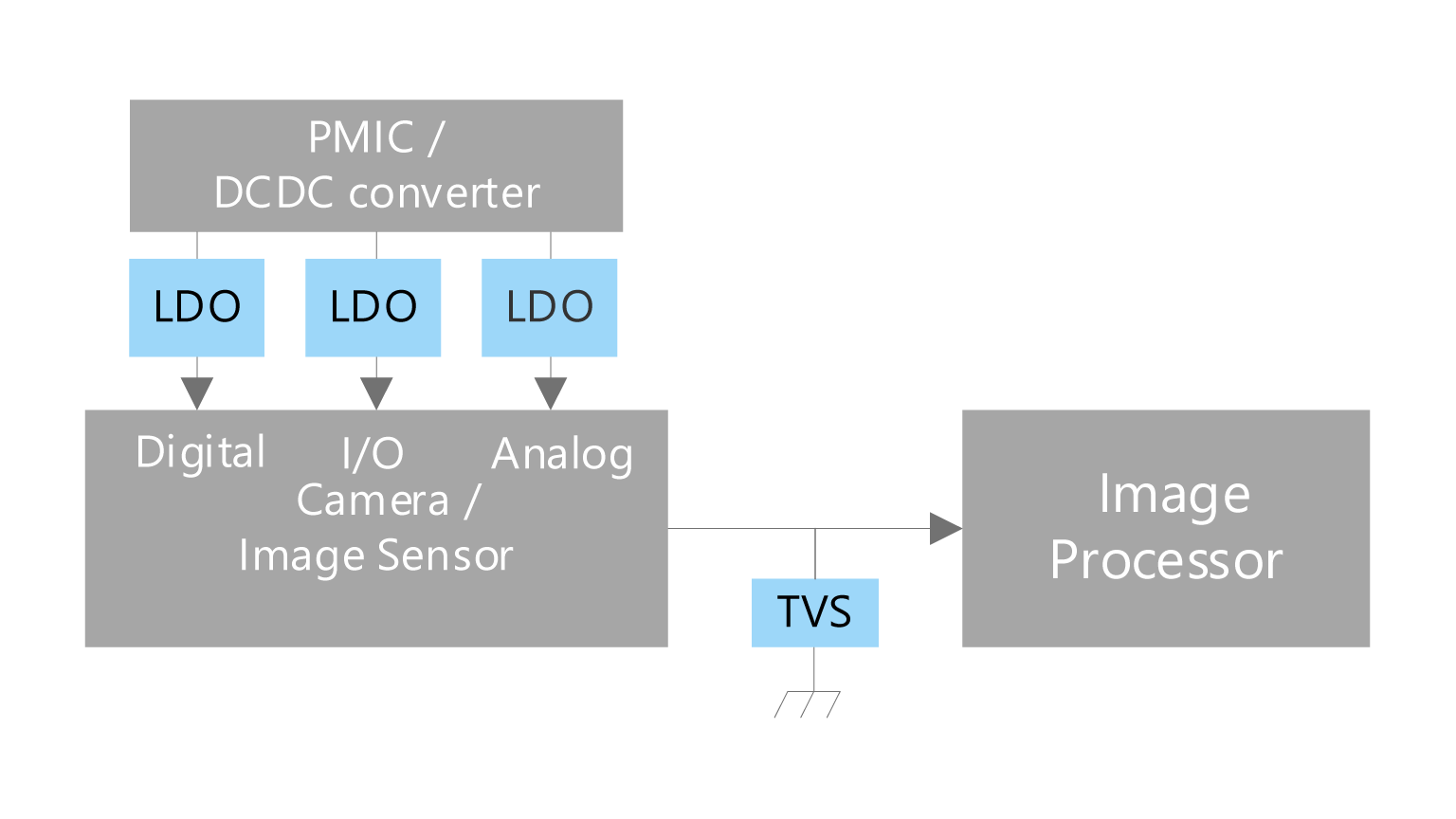

摄像头模块

摄像头模块电路示例

Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)
TVS diode

Small surface mount LDO regulator(1)

器件型号	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜索产品线

Small surface mount LDO regulator(2)

器件型号	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0

搜索产品线

TVS diode

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45

搜索产品线

LCD背光

LCD背光驱动电路示例

Small-signal MOSFET
Schottky barrier diode

Small-signal MOSFET

器件型号	SSM3K341R	SSM6K514NU	SSM3K15ACT
Toshiba Package Name	SOT-23F	SOT-1220 (UDFN6B)	SOT-883 (CST3)
V_DSS (Max) [V]	60	40	30
I_D (Max) [A]	6	12	0.1
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.051	0.0173
Polarity	N-ch	N-ch	N-ch

搜索产品线

Schottky barrier diode

器件型号	CUS10F30	CTS05F40
Toshiba Package Name	SOD-323 (USC)	SOD-882 (CST2)
V_RRM (Max) [V]
V_R (Max) [V]	30	40
C_T (Typ.) [pF]	170	28

搜索产品线

图像处理单元

图像处理处理器外围电路示例

TVS diode

TVS diode

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45
