总方框图

空调（室内机）
空调（室外机）

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

Power Management (Indoor Unit)

AC-DC转换器电路（室内机）

室外机反激式AC-DC转换器电路示例

PFC电路（有源型）

有源型PFC电路示例

PFC电路（部分开关型）

部分开关型PFC电路示例

风扇部分（室内机）

风扇部分（室内／室外单元）　高压IPD

使用HV-IPD的风扇外围电路示例

风扇部分（室内／室外单元）　MCD（控制器）＋高压IPD

使用MCD（控制器）＋高压IPD的风扇外围电路示例

风扇部分（室内／室外单元）　MCU（3相电机控制器）＋高压IPD

使用MCU（3相电机控制器）＋高压IPD的风扇外围电路示例

清洁部分

使用MCD（控制器）的步进电机驱动电路示例

百叶部分

使用晶体管阵列的有刷／步进电机驱动电路示例

隔离电路（室外机和室内机之间）

使用光耦（用于防止板间通信线束的噪声）的保护电路示例

灰尘传感器电路

使用运算放大器放大灰尘传感器信号的电路示例

人体传感器电路

使用运算放大器放大人体传感器信号的电路示例

温度传感器电路

使用运算放大器放温度体传感器信号的电路示例

湿度传感器电路

使用运算放大器放大湿度传感器信号的电路示例

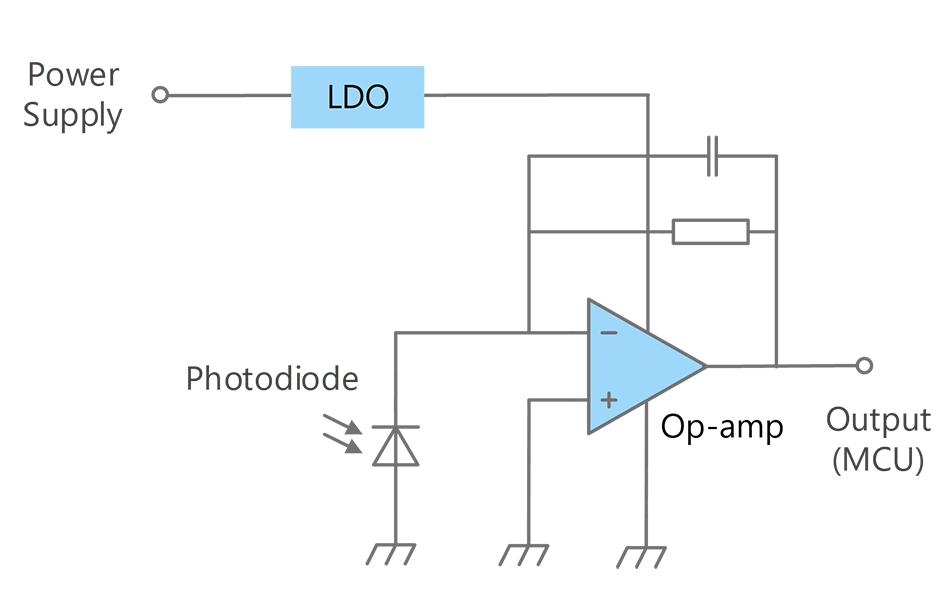

环境光传感器电路

使用运算放大器放大环境光传感器信号的电路示例

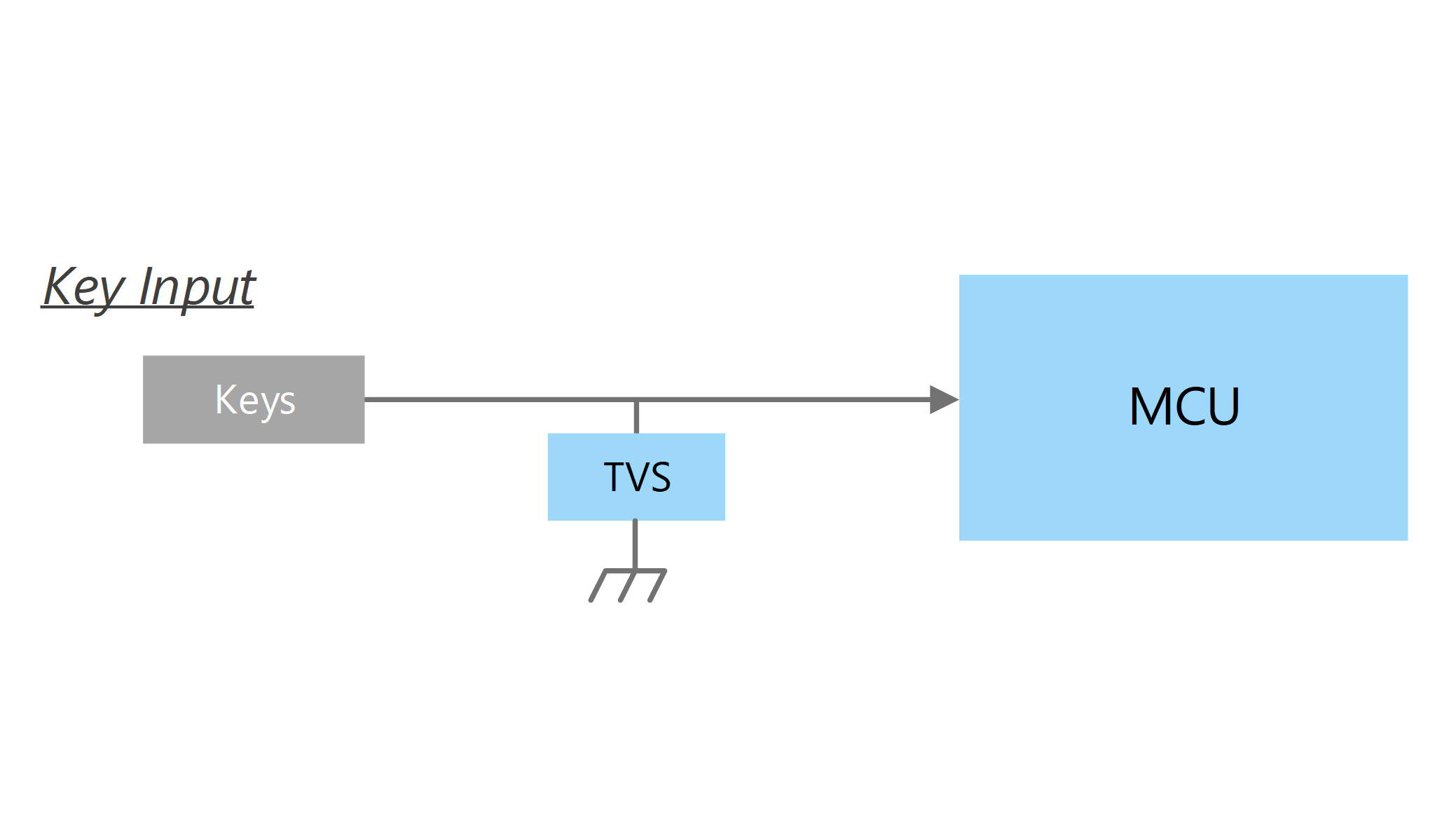

按键输入电路

使用TVS二极管进行静电保护的按键输入电路示例

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

Power Management (Outdoor Unit)

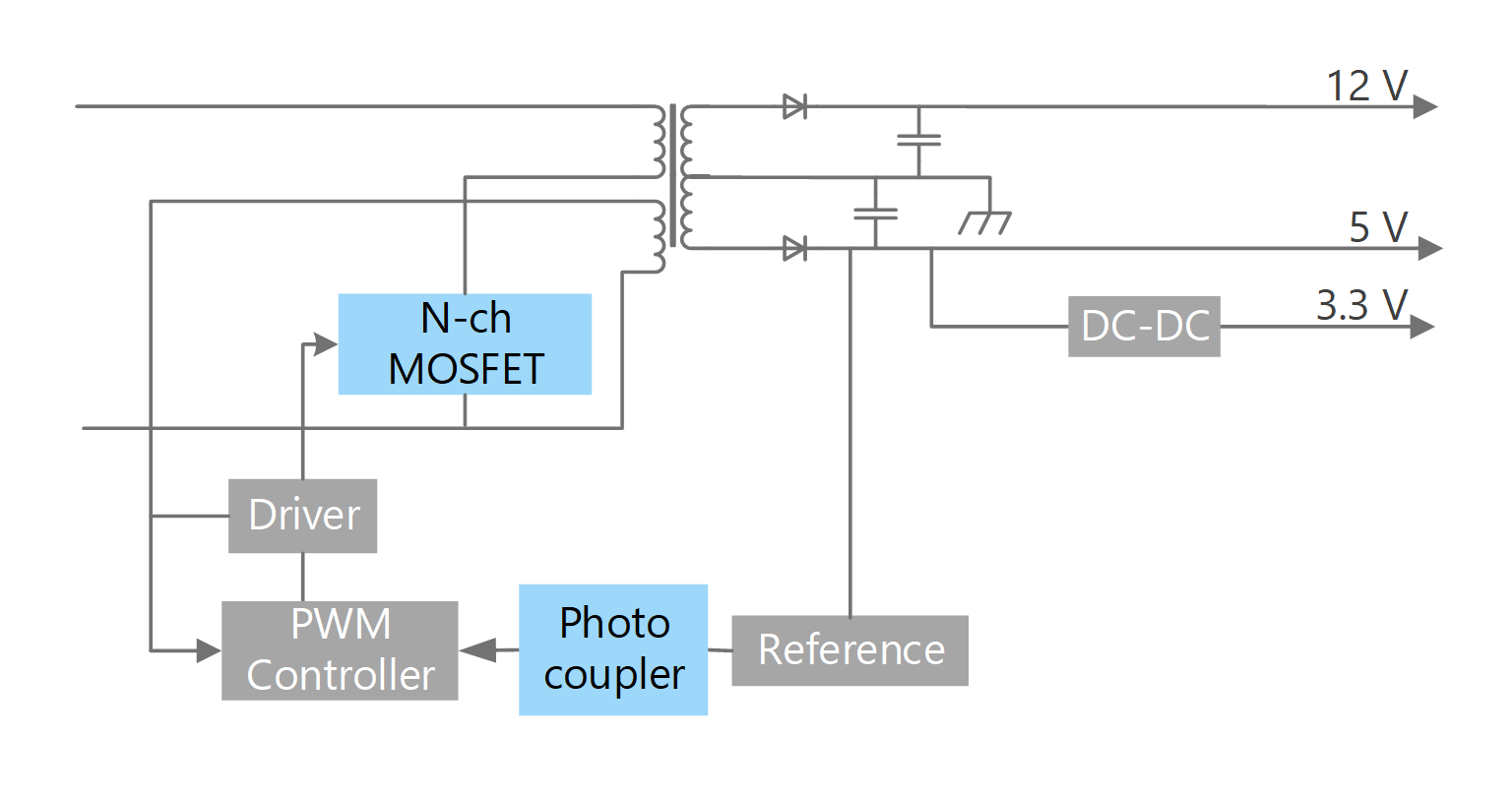

AC-DC converter circuit (Outdoor unit)

Example of Flyback AC-DC converter circuit for outdoor unit

PFC电路（有源型）

有源型PFC电路示例

PFC电路（部分开关型）

部分开关型PFC电路示例

Microcontroller section(Outdoor Unit)

Microcontroller section (Power control block for outdoor unit)

Example of a power supply circuit for MCU using LDO

Fan section(Outdoor Unit)

风扇部分（室内／室外单元）　高压IPD

使用HV-IPD的风扇外围电路示例

风扇部分（室内／室外单元）　MCD（控制器）＋高压IPD

使用MCD（控制器）＋高压IPD的风扇外围电路示例

风扇部分（室内／室外单元）　MCU（3相电机控制器）＋高压IPD

使用MCU（3相电机控制器）＋高压IPD的风扇外围电路示例

Compressor section

Example of compressor drive circuits using MOSFETs

Valve control section

Example of valve control circuit using MCU

隔离电路（室外机和室内机之间）

使用光耦（用于防止板间通信线束的噪声）的保护电路示例

子方框图

Power Management (Indoor Unit)

AC-DC转换器电路（室内机）

室外机反激式AC-DC转换器电路示例

DTMOSⅥ Series MOSFET
Transistor output photocoupler
Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)

Improved performance index R_DS(ON) x Q_gd , which shows switching characteristic, contributes to improvement of power supply efficiency.

器件型号	TK200U65Z5	TK065U65Z	TK200A65Z5	TK040N65Z
Toshiba Package Name	TOLL	TOLL	TO-220SIS	TO-247
V_DSS (Max) [V]	650	650	650	650
I_D (Max) [A]	15	38	15	57
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.200	0.065	0.200	0.04
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

器件型号	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

PFC电路（有源型）

有源型PFC电路示例

DTMOSⅥ Series MOSFET
Discrete IGBT
MCU

Improved performance index R_DS(ON) x Q_gd , which shows switching characteristic, contributes to improvement of power supply efficiency.

器件型号	TK200U65Z5	TK065U65Z	TK200A65Z5	TK040N65Z
Toshiba Package Name	TOLL	TOLL	TO-220SIS	TO-247
V_DSS (Max) [V]	650	650	650	650
I_D (Max) [A]	15	38	15	57
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.200	0.065	0.200	0.04
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Switching devices for high voltage (600 V or more) and high current (30 A or more) application. Lineup of low V_CE(sat) products are effective in reducing conduction loss.

器件型号	GT50JR22	GT50J123	GT30J65MRB
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-3P(N)
V_CES (Max) [V]	600	600	650
I_C (Max) [A]	50	59	60

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

PFC电路（部分开关型）

部分开关型PFC电路示例

Discrete IGBT
MCU

Switching devices for high voltage (600 V or more) and high current (30 A or more) application. Lineup of low V_CE(sat) products are effective in reducing conduction loss.

器件型号	GT50JR22	GT50J123	GT30J65MRB
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-3P(N)
V_CES (Max) [V]	600	600	650
I_C (Max) [A]	50	59	60

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

风扇部分（室内机）

风扇部分（室内／室外单元）　高压IPD

使用HV-IPD的风扇外围电路示例

Three-phase brushless DC motor driver
MCU (1)
MCU (2)

A motor control IC and IGBTs are integrated into one package, contributing to the miniaturization of circuit boards.

器件型号	TB67B000AHG	TB67B000AFG
Toshiba Package Name	P-HDIP30-1233-1.78-001	P-HSSOP34-0918-0.80-001
V_OUT (Max) [V]	600	600
I_OUT (Max) [A]	2	2
V_M [V]	50 to 450	50 to 450
R_ON (Typ.) [Ω]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

风扇部分（室内／室外单元）　MCD（控制器）＋高压IPD

使用MCD（控制器）＋高压IPD的风扇外围电路示例

Three-phase brushless DC motor driver (1)
Three-phase brushless DC motor driver (2)
MCU (1)
MCU (2)

Toshiba's proprietary technology eliminates the need for phase adjustment and achieves high efficiency for a wide range of rotation speeds.

器件型号	TC78B041FNG	TC78B042FTG
Toshiba Package Name	SSOP30-P-300-0.65	P-VQFN32-0505-0.50-005
V_OUT (Max) [V]	18	18
I_OUT (Max) [A]	0.002	0.002
V_M [V]	6 to 16.5	6 to 16.5
R_ON (Typ.) [Ω]

搜索产品线

High voltage and high current brushless DC motor driving can be implemented by using with external power devices.

器件型号	TB6584FNG	TB6584AFNG	TB6634FNG
Toshiba Package Name	SSOP30-P-300-0.65	SSOP30-P-300-0.65	SSOP30-P-300-0.65
V_OUT (Max) [V]	18	18	18
I_OUT (Max) [A]	0.002	0.002	0.002
V_M [V]	6 to 16.5	6 to 16.5	6 to 16.5
R_ON (Typ.) [Ω]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

风扇部分（室内／室外单元）　MCU（3相电机控制器）＋高压IPD

使用MCU（3相电机控制器）＋高压IPD的风扇外围电路示例

MCU (1)
MCU (2)

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

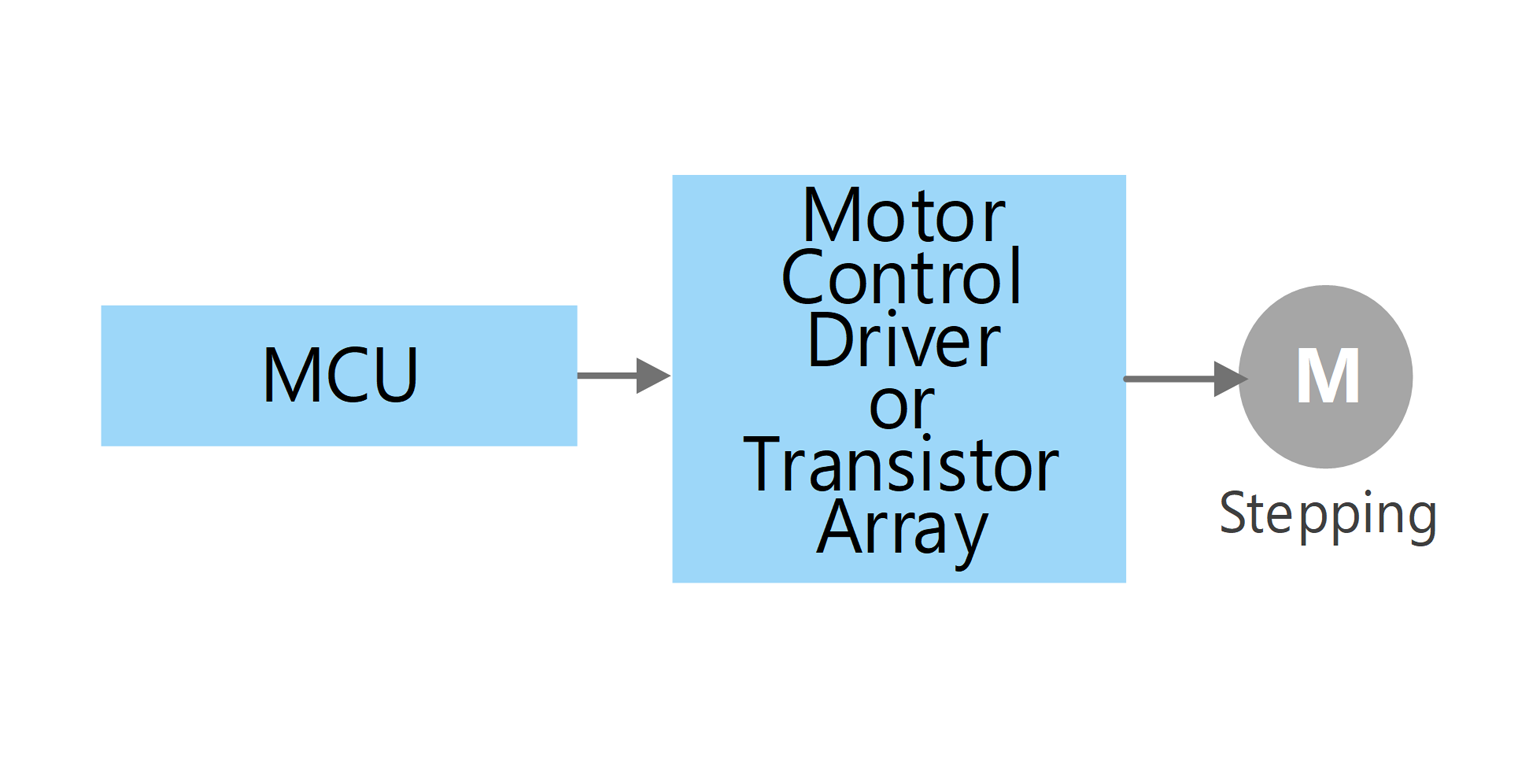

清洁部分

使用MCD（控制器）的步进电机驱动电路示例

Stepping motor & Brushed DC motor driver (1)
Stepping motor & Brushed DC motor driver (2)
MCU
Transistor array

Support low voltage motor drive (2.5 V (min)) and contributes to the power saving of set.

器件型号	TC78H621FNG
Toshiba Package Name	P-TSSOP16-0505-0.65-001
V_OUT (Max) [V]	18
I_OUT (Max) [A]	1.1
V_M [V]	2.5 to 15
R_ON (Typ.) [Ω]	0.8

搜索产品线

Support low voltage motor drive (2.5 V (min)) and contributes to the power saving of set.

器件型号	TC78H660FNG	TC78H660FTG
Toshiba Package Name	P-TSSOP16-0505-0.65-001	P-VQFN16-0303-0.50-001
V_OUT (Max) [V]	18	18
I_OUT (Max) [A]	2	2
V_M [V]	2.5 to 16	2.5 to 16
R_ON(Normal) (Typ.) [Ω]	0.48	0.48
R_ON(Large) (Typ.) [Ω]

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

DMOS FET is used for the output of drive circuit and realizes low loss. And CMOS input can control directly from controller's I/O, etc.

器件型号	TBD62003AFWG	TBD62083AFG	TBD62064AFAG
Toshiba Package Name	SOL16	SOP18-P-375-1.27	P-SSOP24-0613-1.00-001
Number of Circuits	7	8	4
I_OUT (Max) [mA/ch]	500	500	1500

搜索产品线

百叶部分

使用晶体管阵列的有刷／步进电机驱动电路示例

MCU
Transistor array

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

DMOS FET is used for the output of drive circuit and realizes low loss. And CMOS input can control directly from controller's I/O, etc.

器件型号	TBD62003AFWG	TBD62083AFG	TBD62064AFAG
Toshiba Package Name	SOL16	SOP18-P-375-1.27	P-SSOP24-0613-1.00-001
Number of Circuits	7	8	4
I_OUT (Max) [mA/ch]	500	500	1500

搜索产品线

隔离电路（室外机和室内机之间）

使用光耦（用于防止板间通信线束的噪声）的保护电路示例

Transistor output photocoupler
MCU (1)
MCU (2)

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

器件型号	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

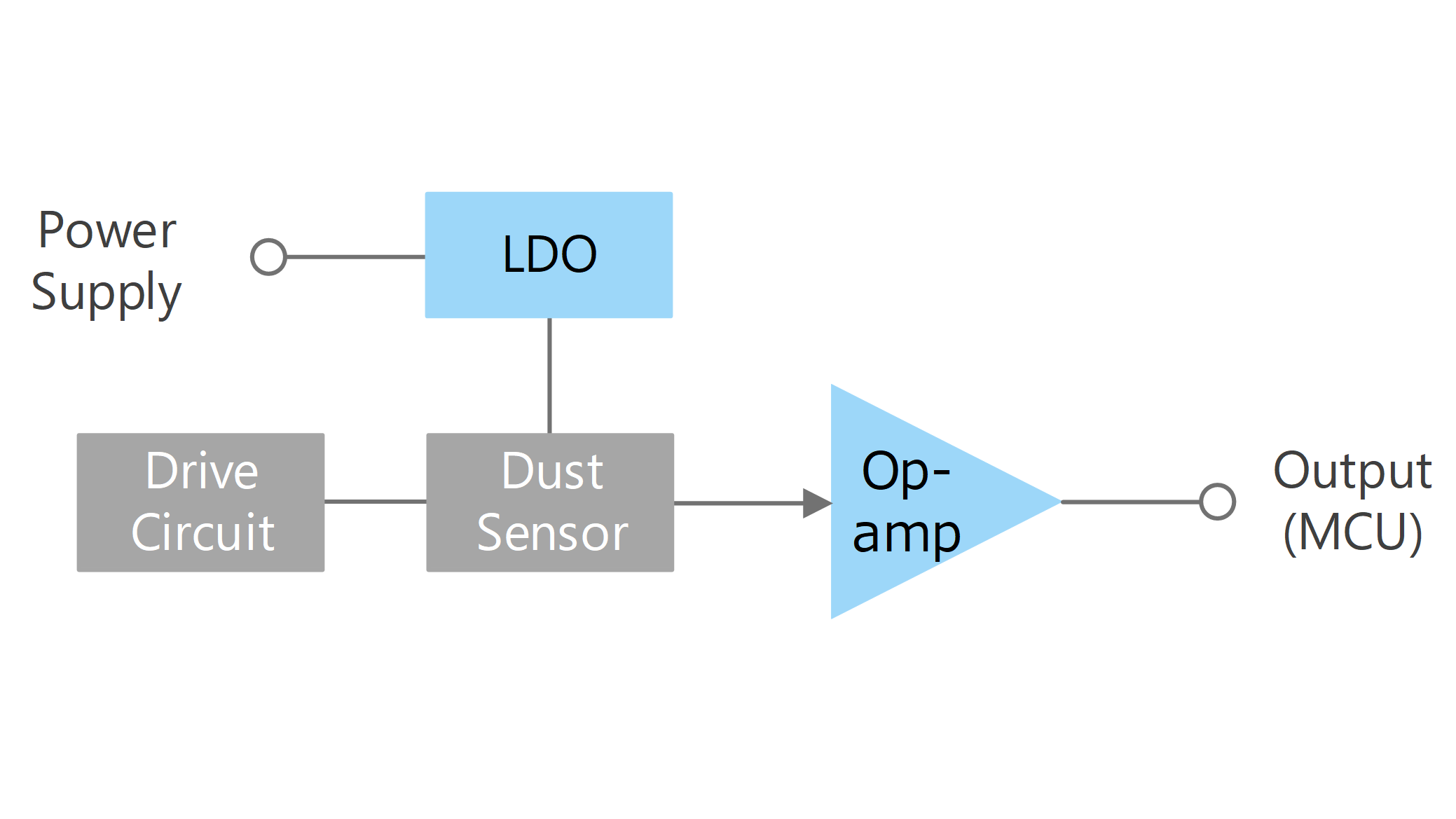

灰尘传感器电路

使用运算放大器放大灰尘传感器信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

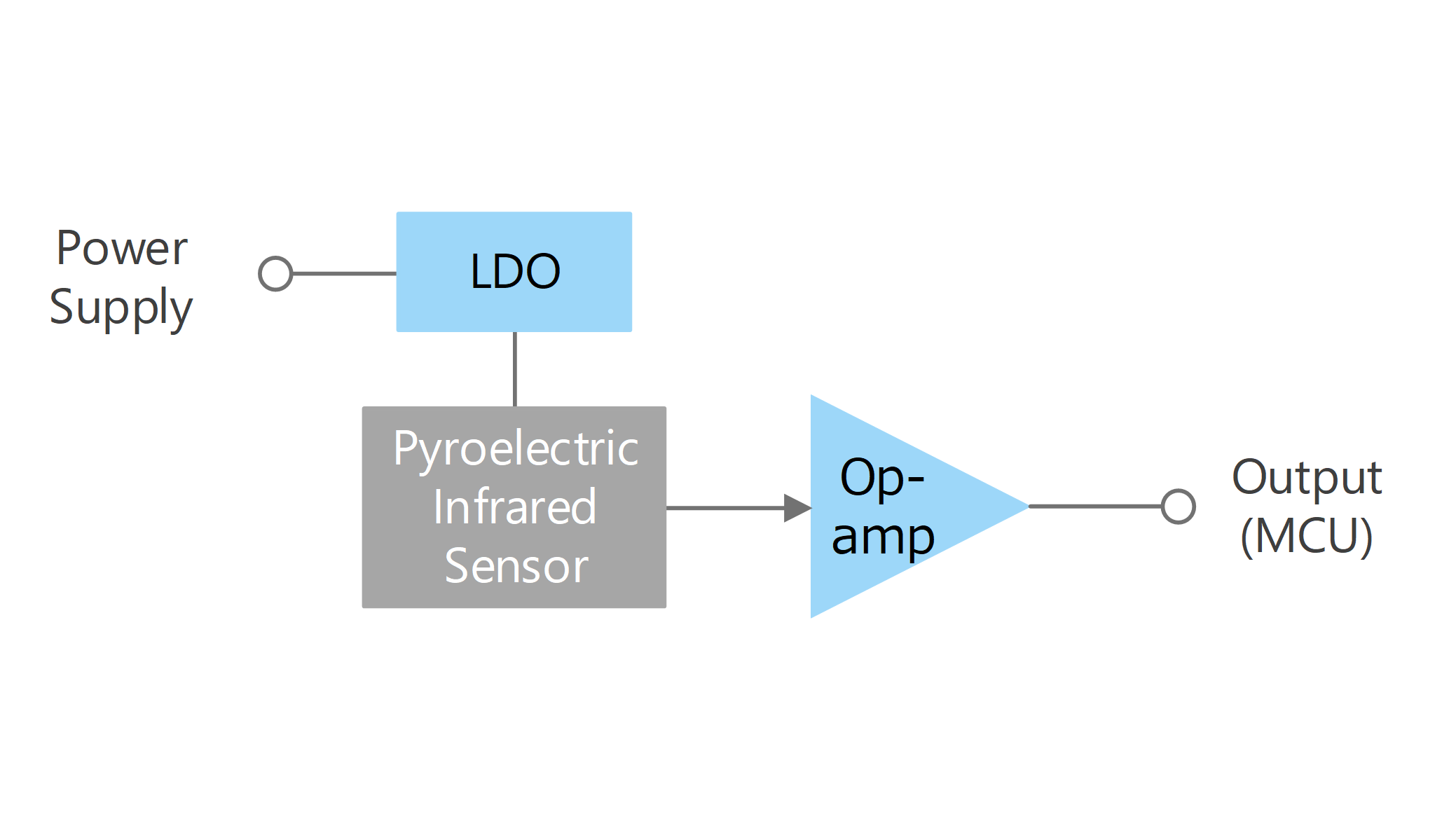

人体传感器电路

使用运算放大器放大人体传感器信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

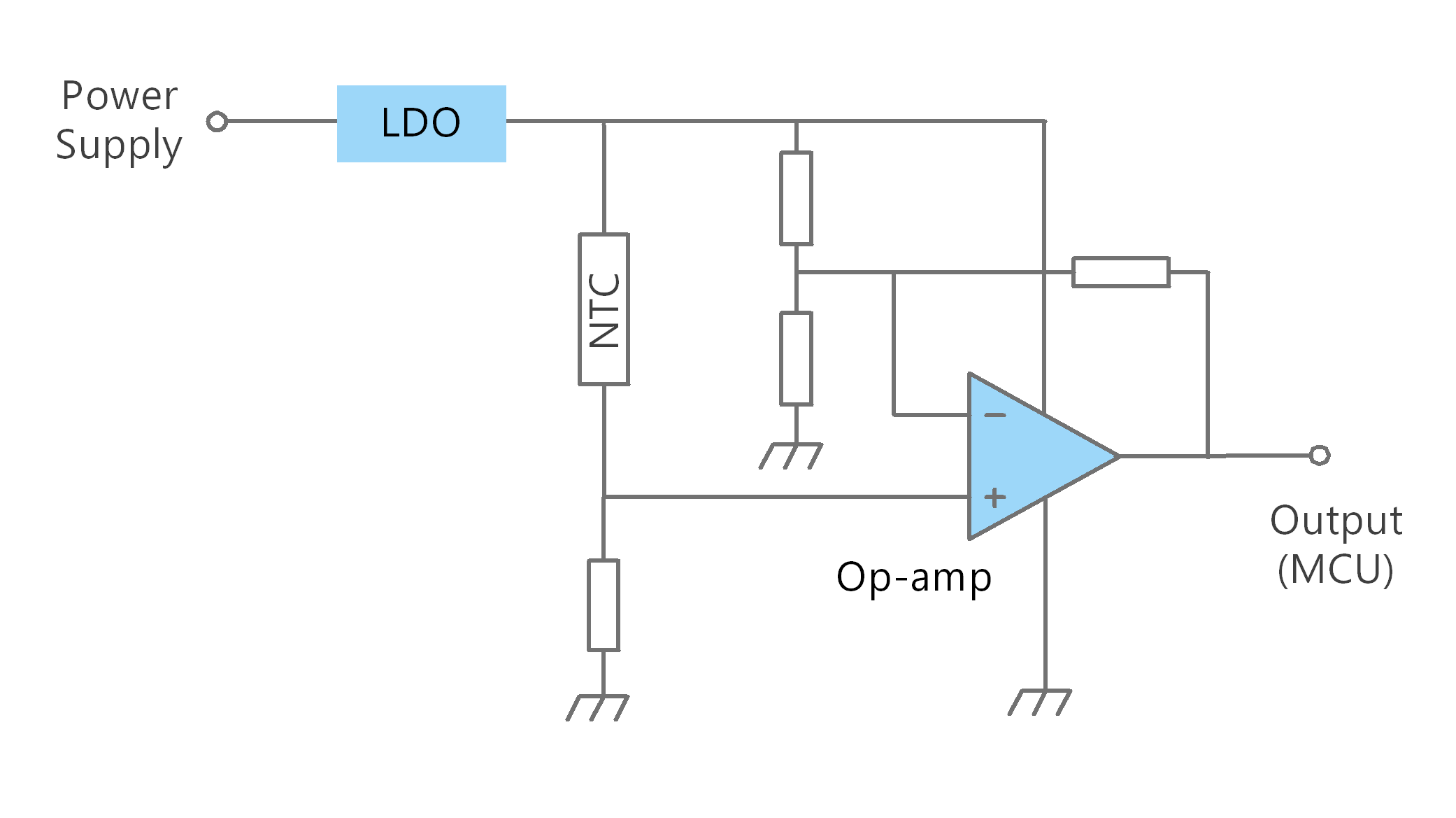

温度传感器电路

使用运算放大器放温度体传感器信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

湿度传感器电路

使用运算放大器放大湿度传感器信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

环境光传感器电路

使用运算放大器放大环境光传感器信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

按键输入电路

使用TVS二极管进行静电保护的按键输入电路示例

MCU
TVS diode

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7BSL	DF2B5M4SL	DF2B6M4SL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-20	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.5	0.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	12	0.2	0.2

搜索产品线

Power Management (Outdoor Unit)

AC-DC converter circuit (Outdoor unit)

Example of Flyback AC-DC converter circuit for outdoor unit

DTMOSⅥ Series MOSFET
Transistor output photocoupler

Improved performance index R_DS(ON) x Q_gd , which shows switching characteristic, contributes to improvement of power supply efficiency.

器件型号	TK200U65Z5	TK065U65Z	TK200A65Z5	TK040N65Z
Toshiba Package Name	TOLL	TOLL	TO-220SIS	TO-247
V_DSS (Max) [V]	650	650	650	650
I_D (Max) [A]	15	38	15	57
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.200	0.065	0.200	0.04
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

器件型号	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

PFC电路（有源型）

有源型PFC电路示例

DTMOSⅥ Series MOSFET
Discrete IGBT
MCU

Improved performance index R_DS(ON) x Q_gd , which shows switching characteristic, contributes to improvement of power supply efficiency.

器件型号	TK200U65Z5	TK065U65Z	TK200A65Z5	TK040N65Z
Toshiba Package Name	TOLL	TOLL	TO-220SIS	TO-247
V_DSS (Max) [V]	650	650	650	650
I_D (Max) [A]	15	38	15	57
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.200	0.065	0.200	0.04
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Switching devices for high voltage (600 V or more) and high current (30 A or more) application. Lineup of low V_CE(sat) products are effective in reducing conduction loss.

器件型号	GT50JR22	GT50J123	GT30J65MRB
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-3P(N)
V_CES (Max) [V]	600	600	650
I_C (Max) [A]	50	59	60

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

PFC电路（部分开关型）

部分开关型PFC电路示例

Discrete IGBT
MCU

Switching devices for high voltage (600 V or more) and high current (30 A or more) application. Lineup of low V_CE(sat) products are effective in reducing conduction loss.

器件型号	GT50JR22	GT50J123	GT30J65MRB
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-3P(N)
V_CES (Max) [V]	600	600	650
I_C (Max) [A]	50	59	60

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

Microcontroller section(Outdoor Unit)

Microcontroller section (Power control block for outdoor unit)

Example of a power supply circuit for MCU using LDO

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
MCU

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

Fan section(Outdoor Unit)

风扇部分（室内／室外单元）　高压IPD

使用HV-IPD的风扇外围电路示例

Three-phase brushless DC motor driver
MCU (1)
MCU (2)

A motor control IC and IGBTs are integrated into one package, contributing to the miniaturization of circuit boards.

器件型号	TB67B000AHG	TB67B000AFG
Toshiba Package Name	P-HDIP30-1233-1.78-001	P-HSSOP34-0918-0.80-001
V_OUT (Max) [V]	600	600
I_OUT (Max) [A]	2	2
V_M [V]	50 to 450	50 to 450
R_ON (Typ.) [Ω]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

风扇部分（室内／室外单元）　MCD（控制器）＋高压IPD

使用MCD（控制器）＋高压IPD的风扇外围电路示例

Three-phase brushless DC motor driver (1)
Three-phase brushless DC motor driver (2)
MCU (1)
MCU (2)

Toshiba's proprietary technology eliminates the need for phase adjustment and achieves high efficiency for a wide range of rotation speeds.

器件型号	TC78B041FNG	TC78B042FTG
Toshiba Package Name	SSOP30-P-300-0.65	P-VQFN32-0505-0.50-005
V_OUT (Max) [V]	18	18
I_OUT (Max) [A]	0.002	0.002
V_M [V]	6 to 16.5	6 to 16.5
R_ON (Typ.) [Ω]

搜索产品线

High voltage and high current brushless DC motor driving can be implemented by using with external power devices.

器件型号	TB6584FNG	TB6584AFNG	TB6634FNG
Toshiba Package Name	SSOP30-P-300-0.65	SSOP30-P-300-0.65	SSOP30-P-300-0.65
V_OUT (Max) [V]	18	18	18
I_OUT (Max) [A]	0.002	0.002	0.002
V_M [V]	6 to 16.5	6 to 16.5	6 to 16.5
R_ON (Typ.) [Ω]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

风扇部分（室内／室外单元）　MCU（3相电机控制器）＋高压IPD

使用MCU（3相电机控制器）＋高压IPD的风扇外围电路示例

MCU (1)
MCU (2)

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

Compressor section

Example of compressor drive circuits using MOSFETs

DTMOSⅣ(HSD) Series MOSFET
MCU

The figure of merit RonA has been reduced by 30 % (compared with Toshiba’s existing products), then contribute to improve efficiency of power supply.

器件型号	TK20A60W5
Toshiba Package Name	TO-220SIS
V_DSS (Max) [V]	600
I_D (Max) [A]	20
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.175
Polarity	N-ch

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

Valve control section

Example of valve control circuit using MCU

Triac output photocoupler
MCU
Transistor array

Using a triac with high dv/dt pre-driver for solenoid valve control suppresses false turn-on.

器件型号	TLP3083	TLP3073
Toshiba Package Name	5pin DIP6	5pin DIP6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	5000
T_opr [°C]	-40 to 100	-40 to 100

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 グループ

搜索产品线

DMOS FET is used for the output of drive circuit and realizes low loss. And CMOS input can control directly from controller's I/O, etc.

器件型号	TBD62003AFWG	TBD62083AFG	TBD62064AFAG
Toshiba Package Name	SOL16	SOP18-P-375-1.27	P-SSOP24-0613-1.00-001
Number of Circuits	7	8	4
I_OUT (Max) [mA/ch]	500	500	1500

搜索产品线

隔离电路（室外机和室内机之间）

使用光耦（用于防止板间通信线束的噪声）的保护电路示例

Transistor output photocoupler
MCU (1)
MCU (2)

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

器件型号	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

车身电子

xEV

车载信息娱乐系统

高级驾驶辅助系统（ADAS）

底盘

基础设施

建筑管理系统（BEMS）／健康管理系统（HEMS)

工厂自动化

机器人

商用设备

IoT设备

卫生保健

可穿戴设备

移动

电脑周边

家用电器

分立半导体

二极管

晶体管

通用逻辑IC

模拟器件

数字器件

无线器件

SiC功率器件

光耦

数字隔离器

固态隔离器

光纤传输模块

其他产品用IC

其他内容

空调

总方框图

子方框图

解决方案

参考设计

文档

视频

设计与开发

联系我们

技术咨询
