电动工具方案

15-21V电动工具一个新兴的技术,支持低功耗,低速高扭将是产品的趋势,也同时具备可支持低速无感,对电机要求较高设备的高效连接,同时还能提供非常全面的应用工作。

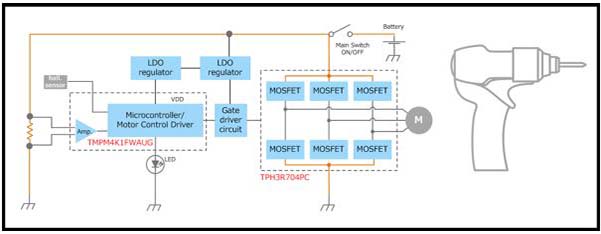

框图

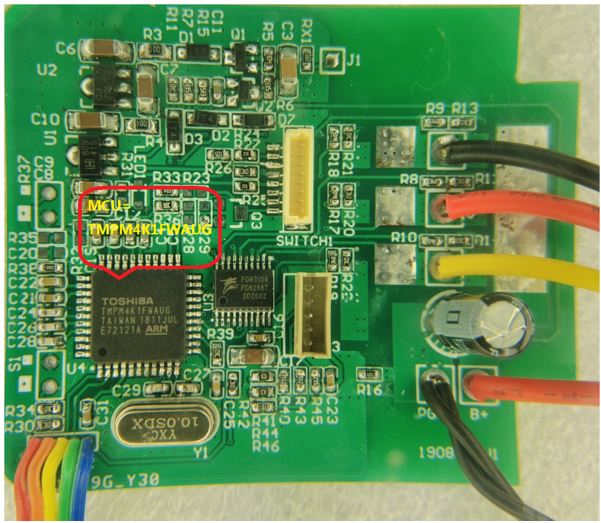

开发板
开发板

适用场所

DIY家装、建筑工地、组装车间等任何需要电动工具的场景和场所。可以打木头,打钢板,打混泥土等。

特性

1. 额定工作电压范围:15.5~21V,适合18V锂电池包平台
2. 空载转速:机械双速0-500 RPM/0-2000RPM
3. 带冲击功能,最大扭矩60Nm
4. 无刷电机速度闭环控制,电机转速调节0-30000RPM
5. 工具带有堵转(过流)保护、过热保护、低压保护等
6. 使用无刷电机比有刷电机寿命长,无火花产生,免维护,使用更广泛
7. 轻量化设计使用可充电锂电池包供电,方便携带和现场作业
8. 无刷电动工具噪音小,舒适度较高。无刷由于特性,在噪音、震动等方面具有较大优势

TMPM4K1FWAUG特性

● Arm Cortex-M4 processor with FPU
‒ Operation frequency: 1 to 80 MHz
● Low-power consumption mode
‒ Operation voltage: 2.7 to 5.5 V
● Operation temperature: -40 to +105°C
● Internal memory
‒ Code flash: 64 to 256 KB, rewritable up to 10,000 times
‒ RAM: 18KB, with parity
● 12-bit Analog to Digital Converter (ADC): 6 to 13 channel inputs
‒ Conversion time: 0.5µs at f ADCLK =120MHz
‒ Self-diagnosis support function
● Operational amplifier(OPAMP): 1 to 3 channels
‒ Gain selectable
● Advanced programmable motor control circuit (A-PMD): 1 channels
‒ 3-phase complementary PWM output, Synchronized with 12-bit ADC
‒ PFC control: support 3-phase interleaved PFC
‒ Emergency stop function by external inputs (EMG pin, OVV pin)
● Advanced vector engine plus (A-VE+): 1 channel
‒ Vector control coprocessor cooperates with ADC/A-PMD
‒ 1-shunt current detection area can be enlarged
‒ Dead time compensation control, non-interference control
● Advanced Encoder input circuit (A-ENC): 1 channel
‒ Encoder/sensor (3 types)/Timer /Phase counter mode

TPH3R704PC特性

  • (1) High-speed switching
  • (2) Small gate charge: Q SW = 14 nC (typ.)
  • (3) Small output charge: Q oss = 28 nC (typ.)
  • (4) Low drain-source on-resistance: R DS(ON) = 2.9 mΩ (typ.) (V GS = 10 V)
  • (5) Low leakage current: I DSS = 10 µA (max) (V DS = 40 V)
  • (6) Enhancement mode: V th = 1.4 to 2.4 V (V DS = 10 V, I D = 0.3 mA)
