变频器／伺服

总方框图

变频器／伺服

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

PFC／DC-DC转换器

功率因数校正（PFC）

功率因数校正电路示例

DC-DC转换器

MCU与DC-DC转换器之间的信号传输电路示例

电机驱动电路

电机驱动电路（使用MOSFET）

使用MOSFET的电机驱动电路示例

电机驱动电路（使用IGBT模块／IPM）

使用IGBT模块或IPM的电机驱动电路示例

多电平电机驱动电路（使用MOSFET）

使用MOSFET的多电平电机驱动电路示例

模拟信号传输线

电源线与模拟前端之间的信号传输电路示例

数字信号传输线

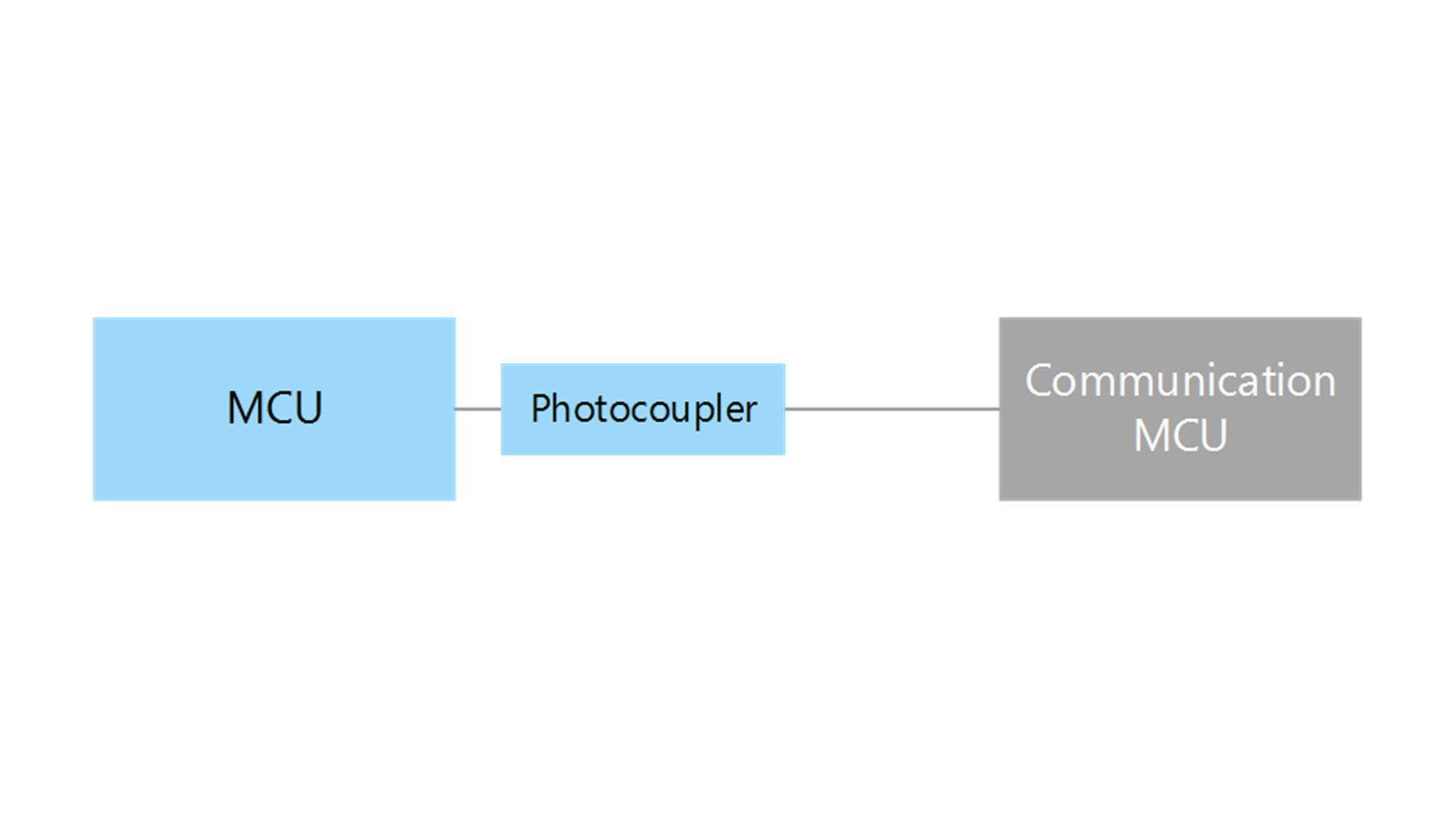

MCU数字信号传输电路示例

接口电路

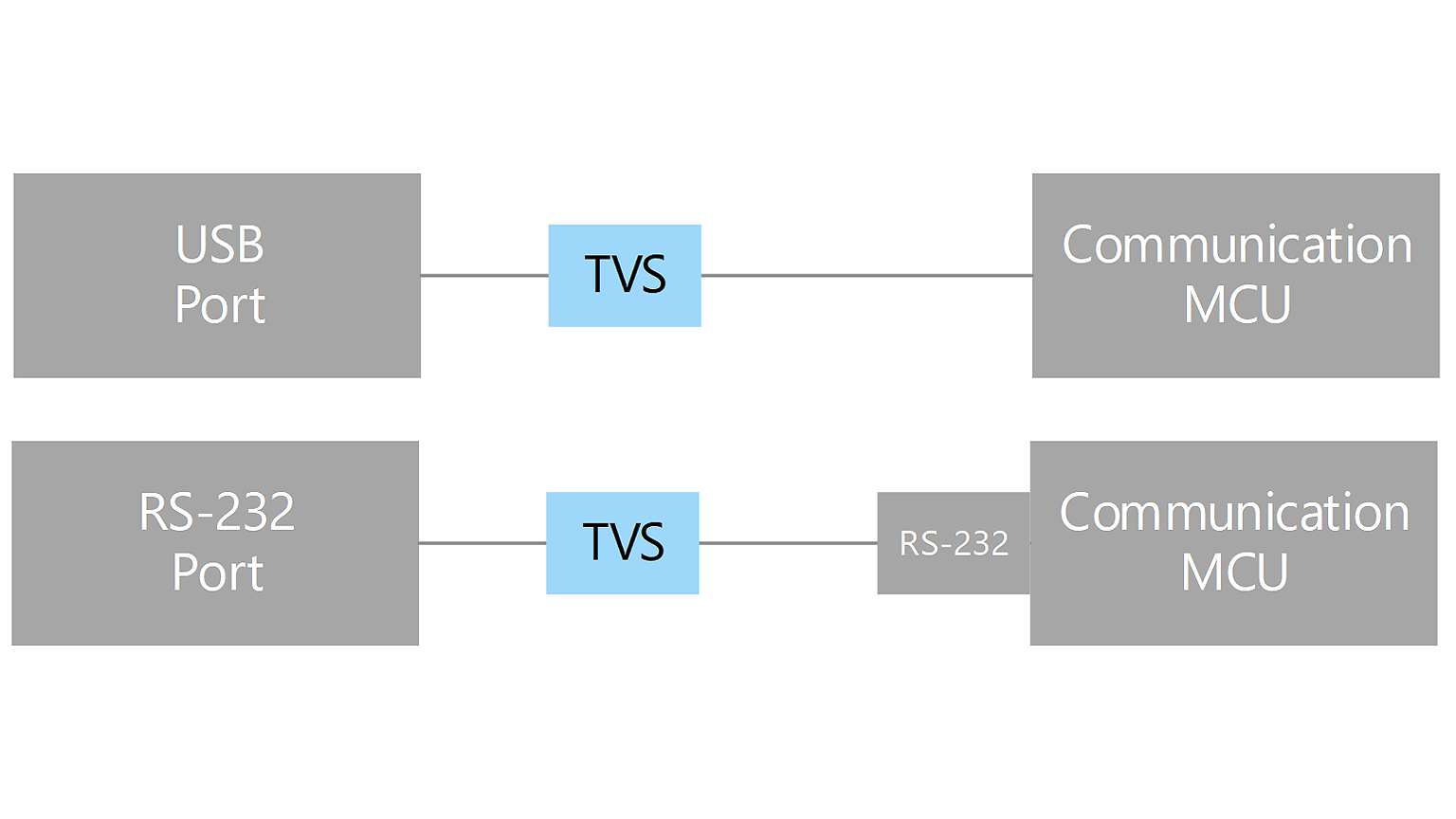

接口信号线ESD保护电路示例

子方框图

PFC／DC-DC转换器

功率因数校正（PFC）

功率因数校正电路示例

DTMOS Series MOSFET
SiC Schottky barrier diode
Gate driver photocoupler (for MOSFET/IPM driving)
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contribute to improve power supply efficiency and miniaturization of the set.

Part Number	TK25A60X	TK16A60W5	TK110A65Z	TK190A65Z	TK110U65Z	TK190U65Z
Toshiba Package Name	TO-220SIS	TO-220SIS	TO-220SIS	TO-220SIS	TOLL	TOLL
V_DSS (Max) [V]	600	600	650	650	650	650
I_D (Max) [A]	25	15.8	24	15	24	15
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.125	0.23	0.11	0.19	0.11	0.19
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC Schottky barrier diodes with low loss and high efficiency are realized by adopting new metal and optimizing device design.

Part Number	TRS12A65F	TRS24N65FB	TRS2E65H	TRS12E65H	TRS4V65H	TRS12V65H
Toshiba Package Name	TO-220F-2L	TO-247	TO-220-2L	TO-220-2L	DFN 8×8	DFN 8×8
I_F(DC) (Max) [A]	12	24	2	12	4	12
V_RRM (Max) [V]	650	650	650	650	650	650
V_F (Max) [V]	1.6	1.6	1.35	1.35	1.35	1.35
I_R (Max) [µA] @ V_RRM (Max)	60	60	40	120	55	120

搜索产品线

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP152	TLP5774H	TLP2745	TLP2719
Toshiba Package Name	5pin SO6	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	4.5
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3	0.001
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	open-collector

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

DC-DC转换器

MCU与DC-DC转换器之间的信号传输电路示例

DTMOS Series MOSFET
U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)
Gate driver photocoupler (for MOSFET/IPM driving)
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contribute to improve power supply efficiency and miniaturization of the set.

Part Number	TK25A60X	TK16A60W5	TK110A65Z	TK190A65Z	TK110U65Z	TK190U65Z
Toshiba Package Name	TO-220SIS	TO-220SIS	TO-220SIS	TO-220SIS	TOLL	TOLL
V_DSS (Max) [V]	600	600	650	650	650	650
I_D (Max) [A]	25	15.8	24	15	24	15
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.125	0.23	0.11	0.19	0.11	0.19
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

Contribution to energy saving and efficiency increasing with wide variety of lineup and easy design.

Part Number	TPN19008QM	TPH2R408QM	TPH4R008QM	TPH9R00CQ5
Toshiba Package Name	TSON Advance	SOP Advance	SOP Advance(N)	SOP Advance / SOP Advance(N)
V_DSS (Max) [V]	80	80	80	150
I_D (Max) [A]	34	120	86	64
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.019	0.00243	0.004	0.009
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Contribution to energy saving and efficiency increasing with wide variety of lineup and easy design.

Part Number	TK2R4A08QM	TK2R4E08QM	TK100E10N1
Toshiba Package Name	TO-220SIS	TO-220	TO-220
V_DSS (Max) [V]	80	80	100
I_D (Max) [A]	100	120	207
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00244	0.00244	0.0034
Polarity	N-ch	N-ch	N-ch

搜索产品线

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP152	TLP5774H	TLP2745	TLP2719
Toshiba Package Name	5pin SO6	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	4.5
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3	0.001
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	open-collector

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

电机驱动电路

电机驱动电路（使用MOSFET）

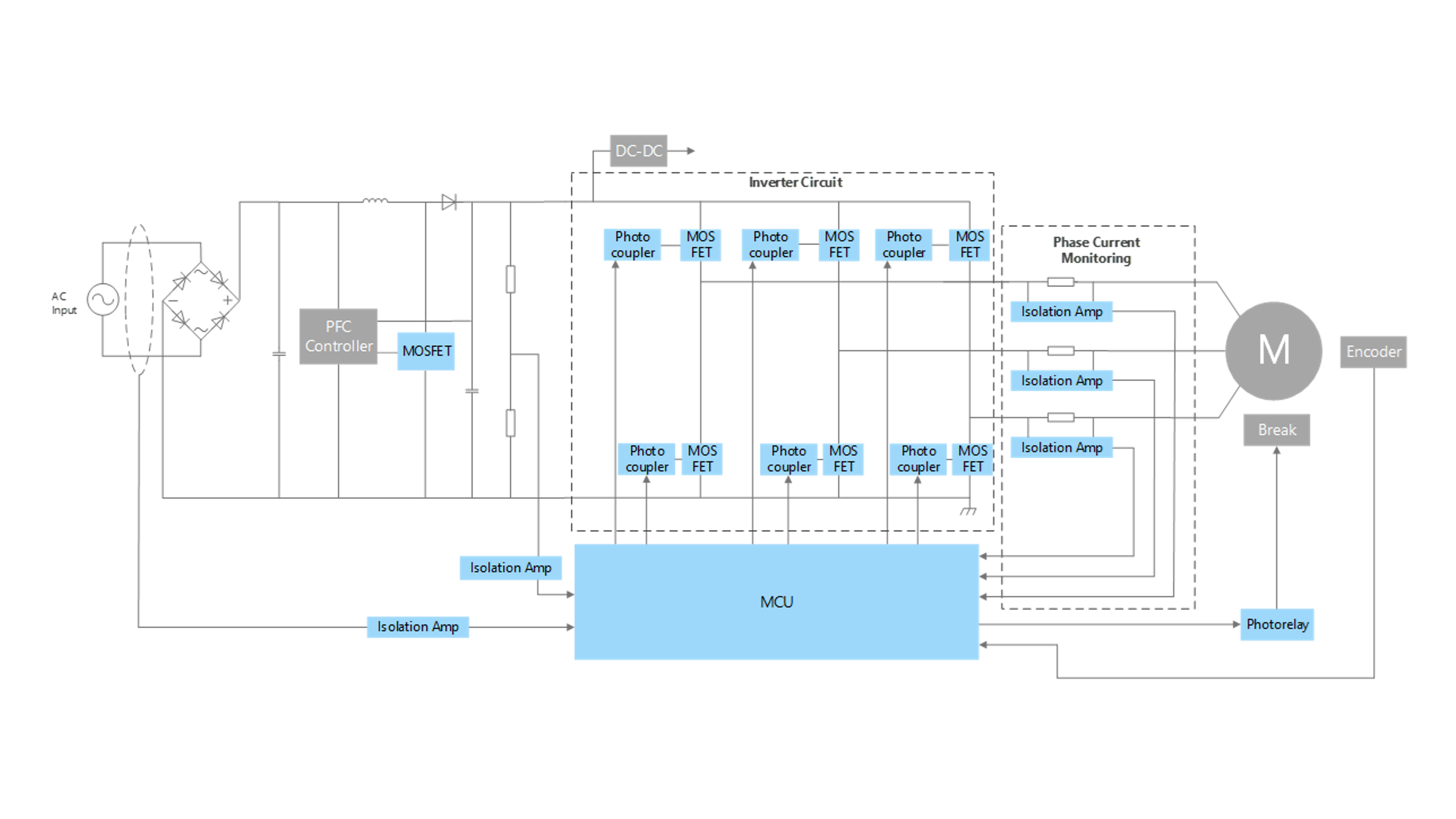

使用MOSFET的电机驱动电路示例

DTMOS Series MOSFET
Gate driver photocoupler (for MOSFET/IPM driving)
Isolation amplifier
Photorelay
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contribute to improve power supply efficiency and miniaturization of the set.

Part Number	TK25A60X	TK16A60W5	TK110A65Z	TK190A65Z	TK110U65Z	TK190U65Z
Toshiba Package Name	TO-220SIS	TO-220SIS	TO-220SIS	TO-220SIS	TOLL	TOLL
V_DSS (Max) [V]	600	600	650	650	650	650
I_D (Max) [A]	25	15.8	24	15	24	15
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.125	0.23	0.11	0.19	0.11	0.19
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP152	TLP5774H	TLP2745	TLP2719
Toshiba Package Name	5pin SO6	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	4.5
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3	0.001
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	open-collector

搜索产品线

This is an isolation amplifier suitable for current and voltage detection of motors and inverters.

Part Number	TLP7820
Toshiba Package Name	SO8L(LF4)
Output Interface	Analog output
BV_S (Min) [V_rms] @ t = 60 [s]	5000
V_DD1 (Max) [V]	5.5
V_DD2 (Max) [V]	5.5
I_DD1 (Max) [mA] @ V_IN+ = 0 [V]	12
I_DD2 (Max) [mA] @ V_IN+ = 0 [V]	10

搜索产品线

Photorelay consists of an infrared light emitting diode optically coupled to a photo-MOSFET and is suitable for replacing mechanical relays.

Part Number	TLP3122A	TLP170AM	TLP3545A	TLP3547	TLP240A	TLP241B
Toshiba Package Name	4pin SO6	4pin SO6	DIP6	DIP8	DIP4	DIP4
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750	2500	2500	5000	5000
I_ON (Max) [A]	1.4	0.7	4	5	0.5	2
R_ON (Max) [Ω]	0.25	0.3	0.06	0.05	2	0.2
I_FT (Max) [mA]	3	1	3	5	3	3
I_FC (Max) [mA]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

电机驱动电路（使用IGBT模块／IPM）

使用IGBT模块或IPM的电机驱动电路示例

DTMOS Series MOSFET
Gate driver photocoupler (for MOSFET/IPM driving)
Gate driver photocoupler (for IGBT driving)
Isolation amplifier
Photorelay
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contribute to improve power supply efficiency and miniaturization of the set.

Part Number	TK25A60X	TK16A60W5	TK110A65Z	TK190A65Z	TK110U65Z	TK190U65Z
Toshiba Package Name	TO-220SIS	TO-220SIS	TO-220SIS	TO-220SIS	TOLL	TOLL
V_DSS (Max) [V]	600	600	650	650	650	650
I_D (Max) [A]	25	15.8	24	15	24	15
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.125	0.23	0.11	0.19	0.11	0.19
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP152	TLP5774H	TLP2745	TLP2719
Toshiba Package Name	5pin SO6	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	4.5
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3	0.001
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	open-collector

搜索产品线

High isolation by opto-coupling solution and characteristics suitable for gate driving help to simplify circuit design.

Part Number	TLP5214A	TLP5212	TLP5222	TLP5231	TLP5754H	TLP5705H
Toshiba Package Name	SO16L	SO16L	SO16L	SO16L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	5000	5000	5000	5000	5000
V_CC / V_DD (Min) [V]	15	15	15	15	15	15
V_CC / V_DD (Max) [V]	30	30	30	23.5	30	30
I_CC / I_DD (Max) [mA]	3.8	5	5	10.2	3	3
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)

搜索产品线

This is an isolation amplifier suitable for current and voltage detection of motors and inverters.

Part Number	TLP7820
Toshiba Package Name	SO8L(LF4)
Output Interface	Analog output
BV_S (Min) [V_rms] @ t = 60 [s]	5000
V_DD1 (Max) [V]	5.5
V_DD2 (Max) [V]	5.5
I_DD1 (Max) [mA] @ V_IN+ = 0 [V]	12
I_DD2 (Max) [mA] @ V_IN+ = 0 [V]	10

搜索产品线

Photorelay consists of an infrared light emitting diode optically coupled to a photo-MOSFET and is suitable for replacing mechanical relays.

Part Number	TLP3122A	TLP170AM	TLP3545A	TLP3547	TLP240A	TLP241B
Toshiba Package Name	4pin SO6	4pin SO6	DIP6	DIP8	DIP4	DIP4
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750	2500	2500	5000	5000
I_ON (Max) [A]	1.4	0.7	4	5	0.5	2
R_ON (Max) [Ω]	0.25	0.3	0.06	0.05	2	0.2
I_FT (Max) [mA]	3	1	3	5	3	3
I_FC (Max) [mA]

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

多电平电机驱动电路（使用MOSFET）

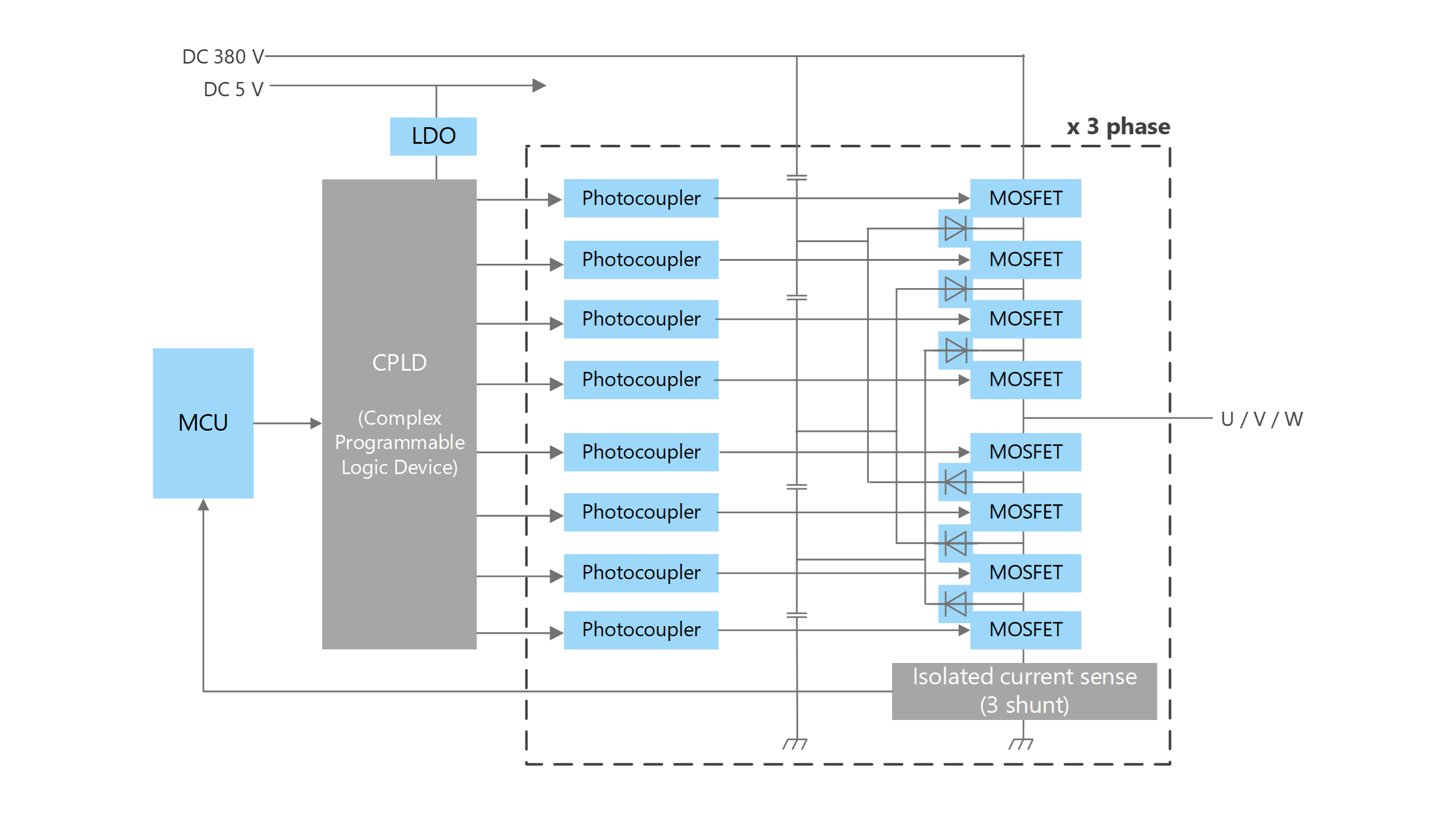

使用MOSFET的多电平电机驱动电路示例

U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)
SiC Schottky barrier diode
Gate driver photocoupler (for MOSFET/IPM driving)
MCU
Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)

Contribution to energy saving and efficiency increasing with wide variety of lineup and easy design.

Part Number	TPN19008QM	TPH2R408QM	TPH4R008QM	TPH9R00CQ5
Toshiba Package Name	TSON Advance	SOP Advance	SOP Advance(N)	SOP Advance / SOP Advance(N)
V_DSS (Max) [V]	80	80	80	150
I_D (Max) [A]	34	120	86	64
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.019	0.00243	0.004	0.009
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Contribution to energy saving and efficiency increasing with wide variety of lineup and easy design.

Part Number	TK2R4A08QM	TK2R4E08QM	TK100E10N1
Toshiba Package Name	TO-220SIS	TO-220	TO-220
V_DSS (Max) [V]	80	80	100
I_D (Max) [A]	100	120	207
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00244	0.00244	0.0034
Polarity	N-ch	N-ch	N-ch

搜索产品线

SiC Schottky barrier diodes with low loss and high efficiency are realized by adopting new metal and optimizing device design.

Part Number	TRS12A65F	TRS24N65FB	TRS2E65H	TRS12E65H	TRS4V65H	TRS12V65H
Toshiba Package Name	TO-220F-2L	TO-247	TO-220-2L	TO-220-2L	DFN 8×8	DFN 8×8
I_F(DC) (Max) [A]	12	24	2	12	4	12
V_RRM (Max) [V]	650	650	650	650	650	650
V_F (Max) [V]	1.6	1.6	1.35	1.35	1.35	1.35
I_R (Max) [µA] @ V_RRM (Max)	60	60	40	120	55	120

搜索产品线

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP152	TLP5774H	TLP2745	TLP2719
Toshiba Package Name	5pin SO6	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	4.5
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3	0.001
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	open-collector

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

模拟信号传输线

电源线与模拟前端之间的信号传输电路示例

Photocoupler for high speed communication
Transistor output photocoupler
MCU

Combines an infrared light emitting diode with high optical output and a light receiving IC chip with high gain and high speed.

Part Number	TLP2710	TLP2761	TLP2770	TLP2210	TLP2261	TLP2270
Toshiba Package Name	SO6L	SO6L	SO6L	SO8L(LF4)	SO8L(LF4)	SO8L(LF4)
BV_S (Min) [V_rms] @ t = 60 [s]	5000	5000	5000	5000	5000	5000
V_CC / V_DD (Min) [V]	2.7	2.7	2.7	2.7	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5	5.5	5.5	5.5	5.5
I_CC / I_DD (Max) [mA]	0.3	1	0.4	0.6	2	0.8
Output Interface	totem-pole(BUF)	totem-pole(INV)	totem-pole(BUF)	totem-pole(BUF)	totem-pole(INV)	totem-pole(BUF)

搜索产品线

High current transfer ratio (CTR) is realized even in the low input current range (I_F = 0.5 mA).

Part Number	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

数字信号传输线

MCU数字信号传输电路示例

Isolation amplifier

This is an isolation amplifier suitable for current and voltage detection of motors and inverters.

Part Number	TLP7820
Toshiba Package Name	SO8L(LF4)
Output Interface	Analog output
BV_S (Min) [V_rms] @ t = 60 [s]	5000
V_DD1 (Max) [V]	5.5
V_DD2 (Max) [V]	5.5
I_DD1 (Max) [mA] @ V_IN+ = 0 [V]	12
I_DD2 (Max) [mA] @ V_IN+ = 0 [V]	10

搜索产品线

接口电路

接口信号线ESD保护电路示例

TVS diode

This absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

Part Number	DF2B6M4BSL	DF2B20M4SL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-8	+/-15	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	1.05	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.12	0.2	41	45
