电动助力转向

总方框图

总方框图示例
电动助力转向(直流有刷电机型)
总方框图示例
电动助力转向(直流无刷电机型)
总方框图示例
电动助力转向(直流无刷电机型(部分冗余))
总方框图示例

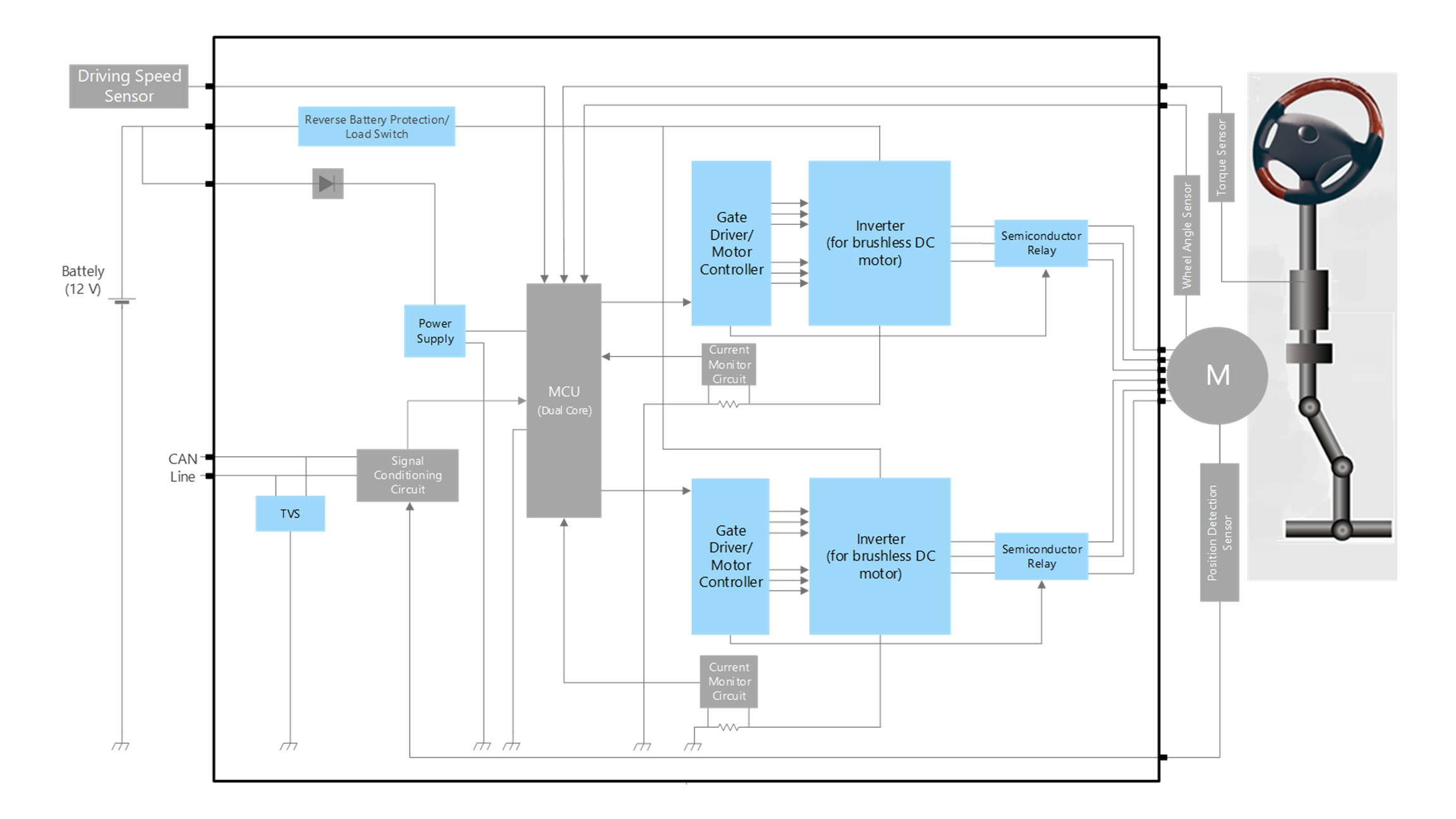

电动助力转向(直流无刷电机型(全冗余))

子方框图

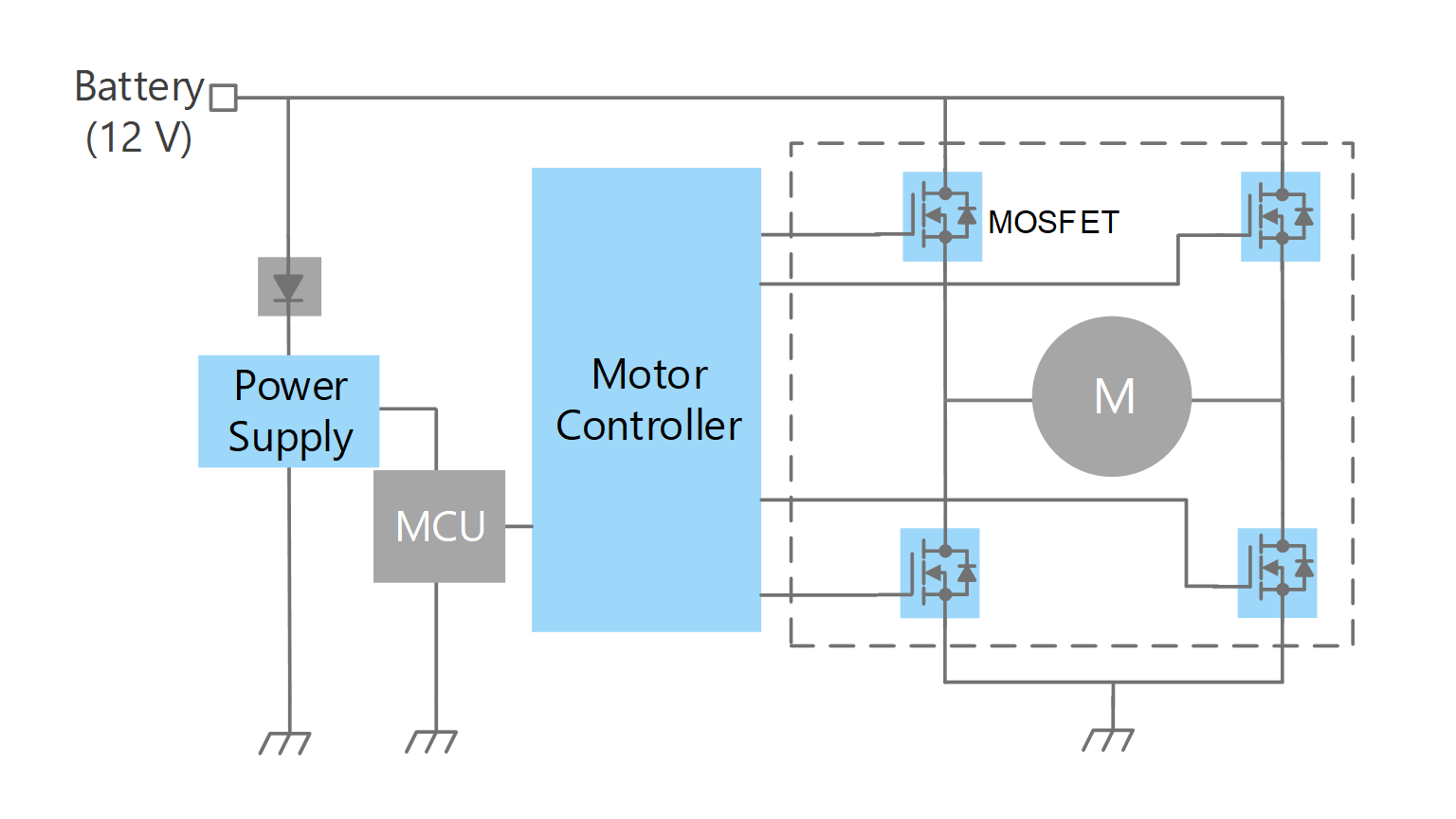

直流有刷电机驱动电路(N沟道型)
用于EPS(电动助力转向)的治理路有刷电机驱动电路示例

应用 / 电动助力转向

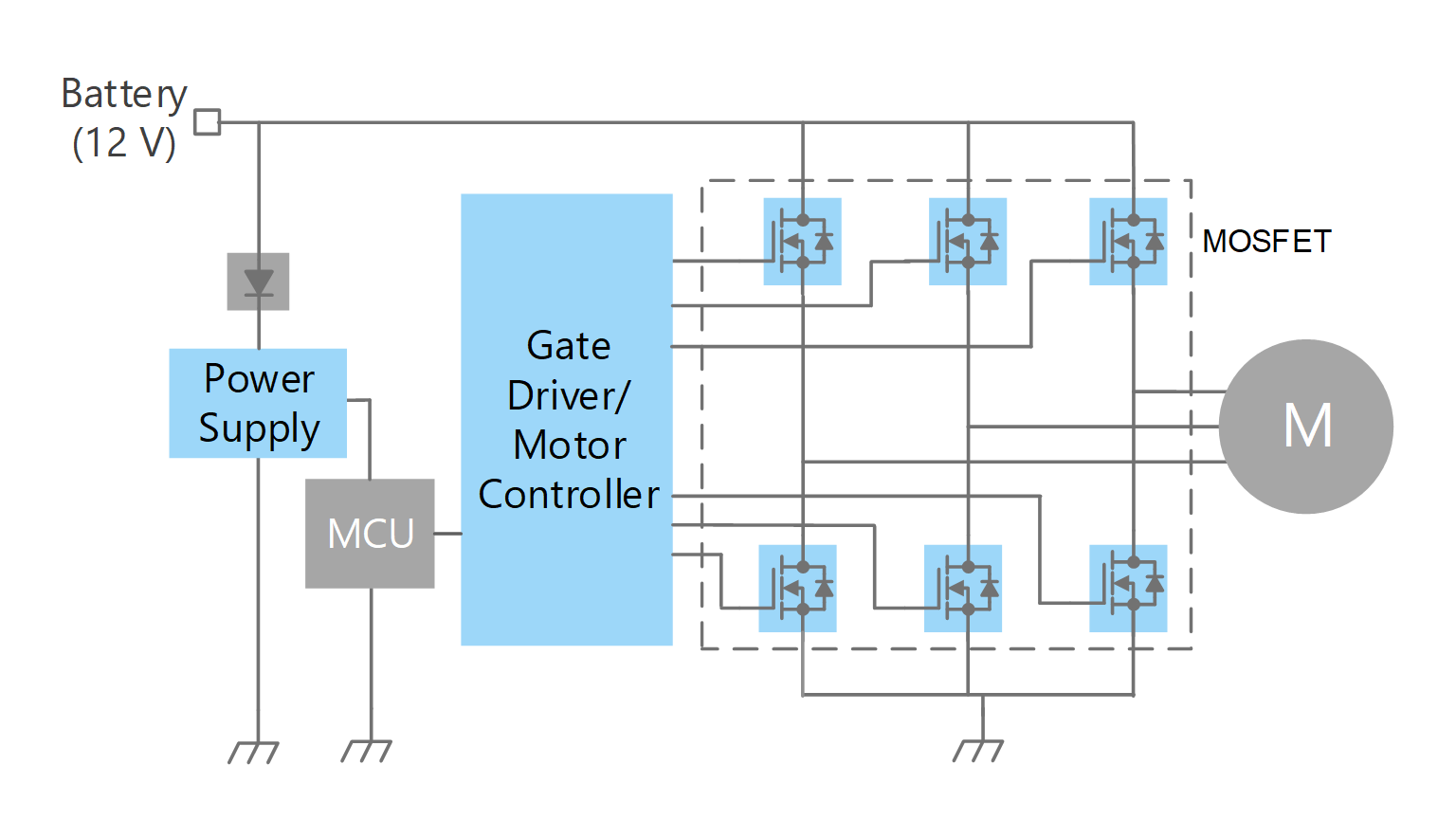

直流无刷电机驱动电路(N沟道型)
用于EPS(电动助力转向)的3相直流无刷电机驱动电路示例

应用 / 电动助力转向

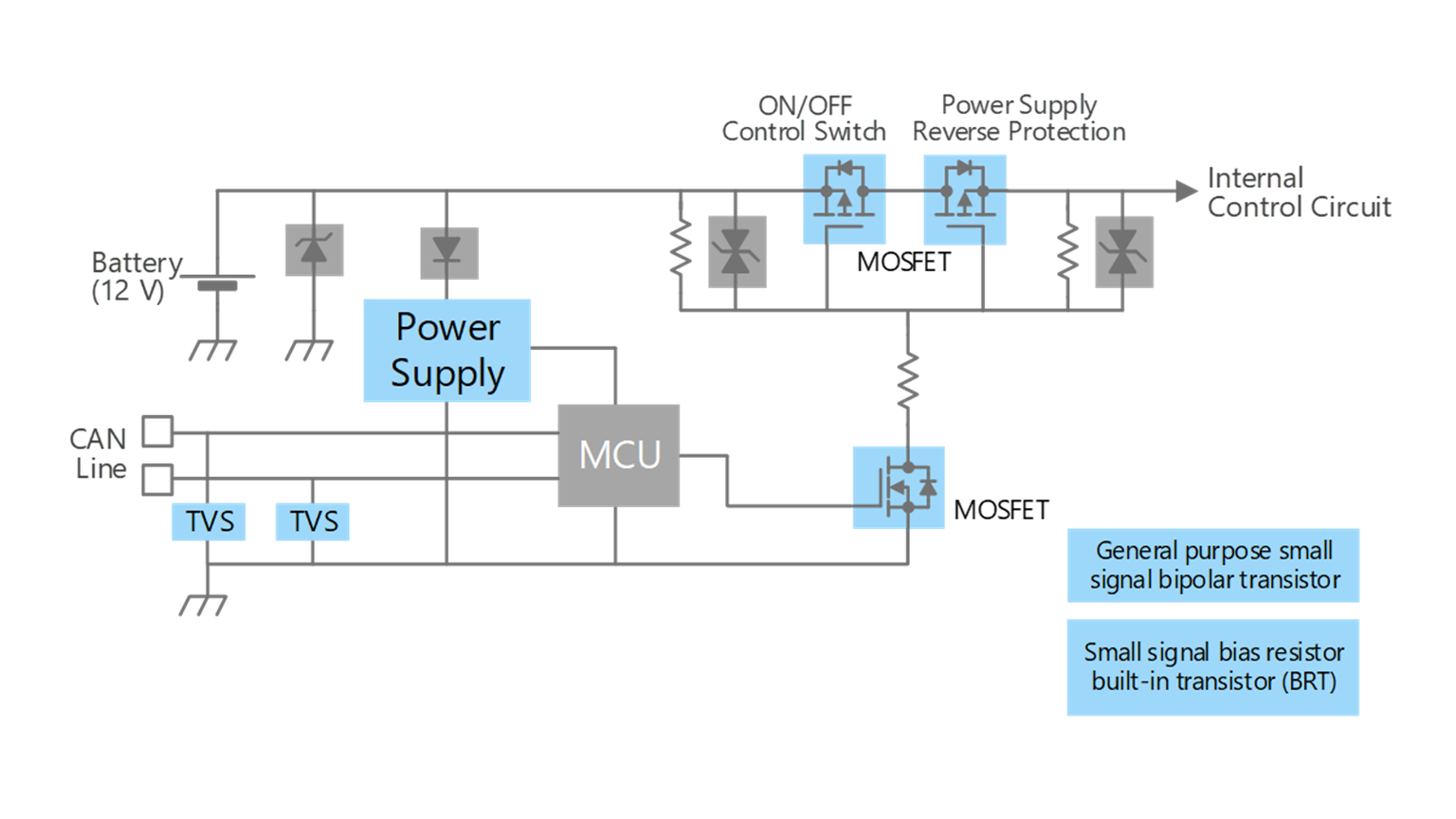

电源开/关控制及反接保护电路(P沟道型)
12V电源线P沟道MOSFET开关控制和反接保护电路示例

应用 / 电动助力转向

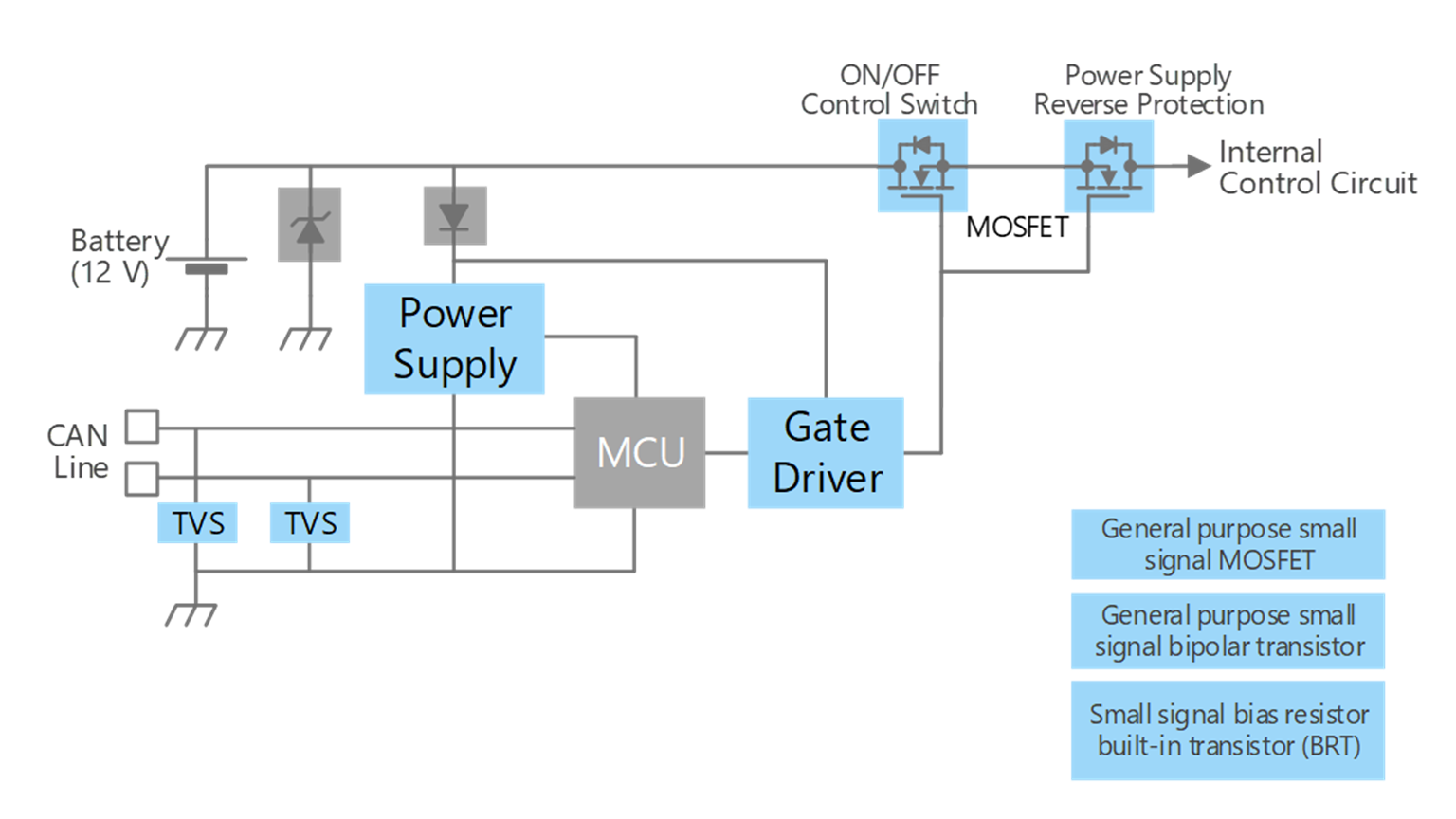

电源开/关控制及反接保护电路(N沟道型)
12V电源线N沟道MOSFET开关控制和反接保护电路示例

应用 / 电动助力转向
