WSON10

In developing your designs, please ensure the datasheet.

WSON10package
Toshiba Code P-WSON10-0303-0.50-001
Mounting Surface Mount
Pins 10
Width×Length×Height
(mm)		 3.0×3.0×0.75
Land pattern(2D Model)
3D Model STEP

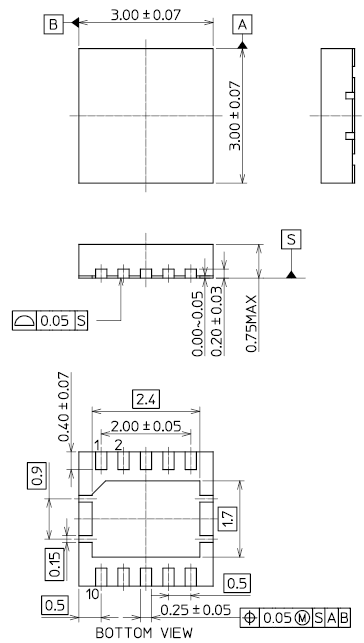

Package Dimensions (mm)
Packing Method -

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
  • Land Pattern(.dxf)： Land pattern Data in DXF Format
  • Land Pattern(.xml)：Land pattern Data in JEITA LPB C-format
  • Land Pattern(.dra)：Land pattern Data for Cadence®OrCAD®
  • Land Pattern(.ftp)： Land pattern Data for Zuken®CR-5000/CR-8000
Jump to Package & Packing Information
