SOP Advance

In developing your designs, please ensure the datasheet.

SOP Advancepackage
Mounting Surface Mount
Pins 8
Width×Length×Height
(mm)
5.0×6.0×0.95

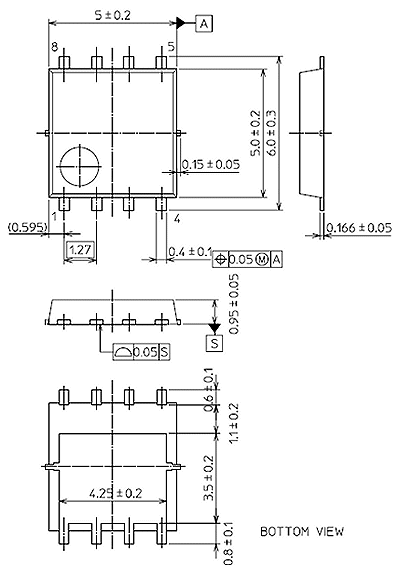

Package Dimensions (mm)
/

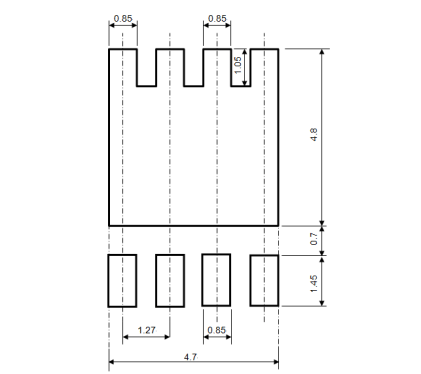

Land pattern dimensions for
reference only (mm)

Packing Method Embossed Tape
Packing Name TE12L TE12L1
Minimum Quantity 3000 pcs/Reel 5000 pcs/Reel
Tape Width (mm) 12
Tape Dimensions (mm)
/
Reel Dimensions (mm)


Jump to Package & Packing Information
