小型MOSFET可降低电池供电设备的功耗并延长其工作时间

Product News 2024-10

The package photograph of small MOSFETs bring lower power consumption and longer operating times to battery-driven devices.

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched small MOSFETs featuring low gate leakage current and low drain cut-off current for portable equipment and IoT devices such as wearable devices and tablet devices.

The new products have significantly reduced the drain cut-off current to 60nA (max)[1] compared with 1μA (max)[2] of Toshiba existing MOSFET products and guarantee a gate leakage current of 50nA (max) under gate-voltage conditions when the MOSFETs are in the on state (at VGS=5V)[2]. These characteristics are suitable for applications that require to minimize total energy increased by high-density design of semiconductor devices and for battery-powered portable devices. They significantly help energy saving and battery longevity of the equipment.

The new products are 29 types of 6 series: 4 series of 30V and 20V N-channel MOSFETs and 2 series of -20V P-channel MOSFETs. A variety of small surface mount packages are available to meet the diverse needs of our customers.

Notes:
[1] In SSM3K79 series
[2] In SSM3K15A series

Applications

  • Smartphones
  • Wearables (Hearable devices)
  • IoT devices
  • Laptop PCs
  • Tablets, etc.

Features

(SSM3K79 Series)

  • Low drain cut-off current:IDSS = 60nA (max) (VDS=30V)
  • Low gate leakage current:IGSS = 50nA (max) (VGS=±5V)

Main Specifications

(Unless otherwise specified, Ta= 25 °C)

Part number

Polarity Package

Absolute maximum ratings

Electric characteristics

Name

Size
(mm)

Drain-
source
voltage
VDSS
(V)

Gate-
source
voltage
VGSS
(V)

Drain
current
(DC)
ID
(A)

Drain
cut-off
current
IDSS
(nA)

Gate
leakage
current
IGSS
(nA)

Drain-
source on-
resistance
RDS(ON)
(Ω)

VDS=
Max

VGS=
±5V

❘VGS❘=
4V

❘VGS❘=
4.5V

Typ. Max Max Max Max
SSM3K79CTC

N-channel

CST3C 0.8 × 0.6

30

±20

0.1

60 ±50

3.6

-

SSM3K79CT CST3 1.0 × 0.6
SSM3K79MFV VESM 1.2 × 1.2
SSM3K79FS SSM 1.6 × 1.6
SSM3K79FU USM 2.1 × 2.0
SSM6N79FE ES6 1.6 × 1.6
SSM6N79FU US6 2.1 × 2.0
SSM3K78CTC

N-channel

CST3C 0.8 × 0.6

20

±10

0.25

80 ±80

-

1.1

SSM3K78MFV VESM 1.2 × 1.2
SSM3K78FS SSM 1.6 × 1.6
SSM6N78FE ES6 1.6 × 1.6
SSM6N78FU US6 2.1 × 2.0
SSM3K77CT

N-channel

CST3 1.0 × 0.6

20

±10

0.2

80 ±80

-

2.2

SSM3K77MFV VESM 1.2 × 1.2
SSM3K77FS SSM 1.6 × 1.6
SSM6N77FE ES6 1.6 × 1.6
SSM6N77FU US6 2.1 × 2.0
SSM3K76CT

N-channel

CST3 1.0 × 0.6

20

±8

0.8

200 ±200

-

0.235

SSM3K76MFV VESM 1.2 × 1.2
SSM3K76FS SSM 1.6 × 1.6
SSM6N76FE ES6 1.6 × 1.6
SSM3J78CTC

P-channel

CST3C 0.8 × 0.6

-20

±10

-0.25

80 ±80

-

1.4

SSM3J78MFV VESM 1.2 × 1.2
SSM3J78FS SSM 1.6 × 1.6
SSM6P78FE ES6 1.6 × 1.6
SSM6P78FU US6 2.1 × 2.0
SSM3J76CT

P-channel

CST3 1.0 × 0.6

-20

±8

-0.8

80 ±80

-

0.39

SSM3J76MFV VESM 1.2 × 1.2
SSM6P76FE ES6 1.6 × 1.6

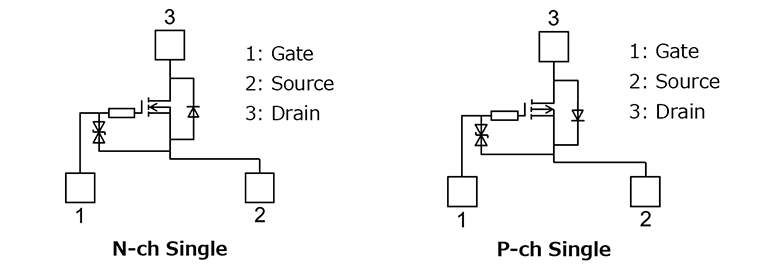

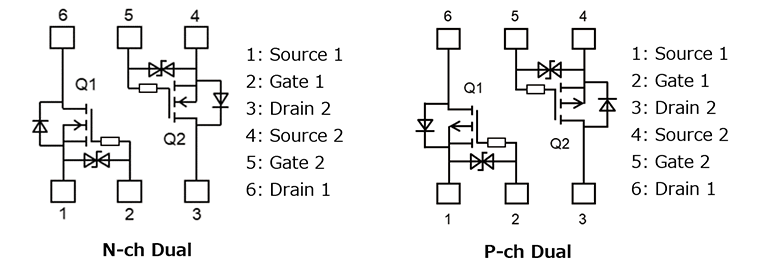

Pin Assignments

The illustration of small MOSFETs bring lower power consumption and longer operating times to battery-driven devices.
The illustration of small MOSFETs bring lower power consumption and longer operating times to battery-driven devices.

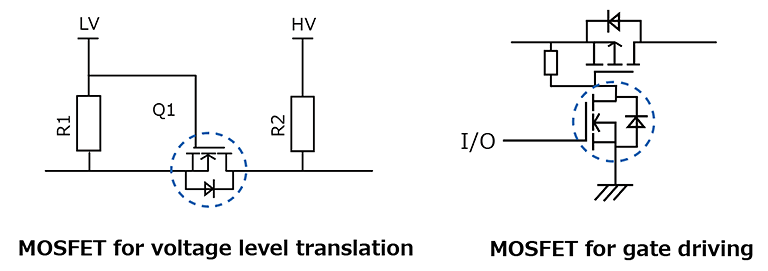

Application Circuit Examples

The illustration of small MOSFETs bring lower power consumption and longer operating times to battery-driven devices.

Note:
The application circuits shown in this document are provided for reference purposes only.
Thorough evaluation is required, especially at the mass-production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.
